LP3-4 700 Bar Hydraulic Torque Wrench Pump

LP3-4 700 Bar Hydraulic Torque Wrench Pump

  • Product code  LP3-2
  • Working pressure 700 bar
  • Three stage torque wrench pump
  • Oil flow rate 7 - 1,6 - 0,8 l/m
  • Electric motor 230V/50Hz 1.1 kW
  • Efective oil capacity 5,5 ltr

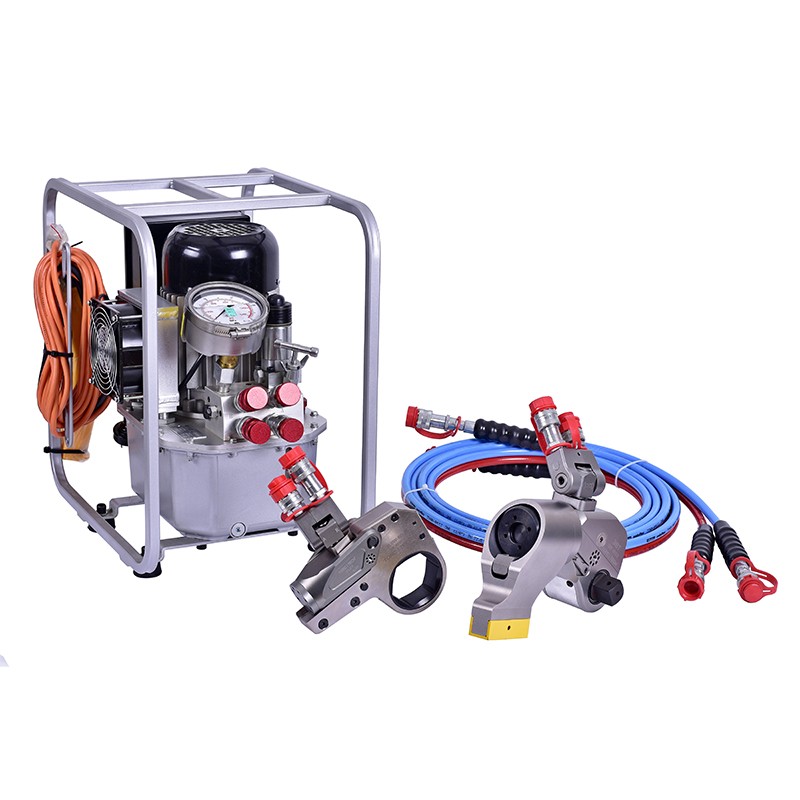

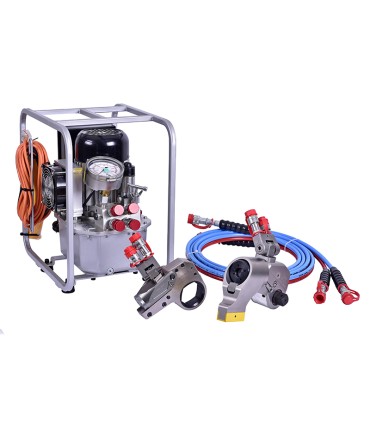

  • Designed for two torque tools
  • Pressure is stepless adjustable

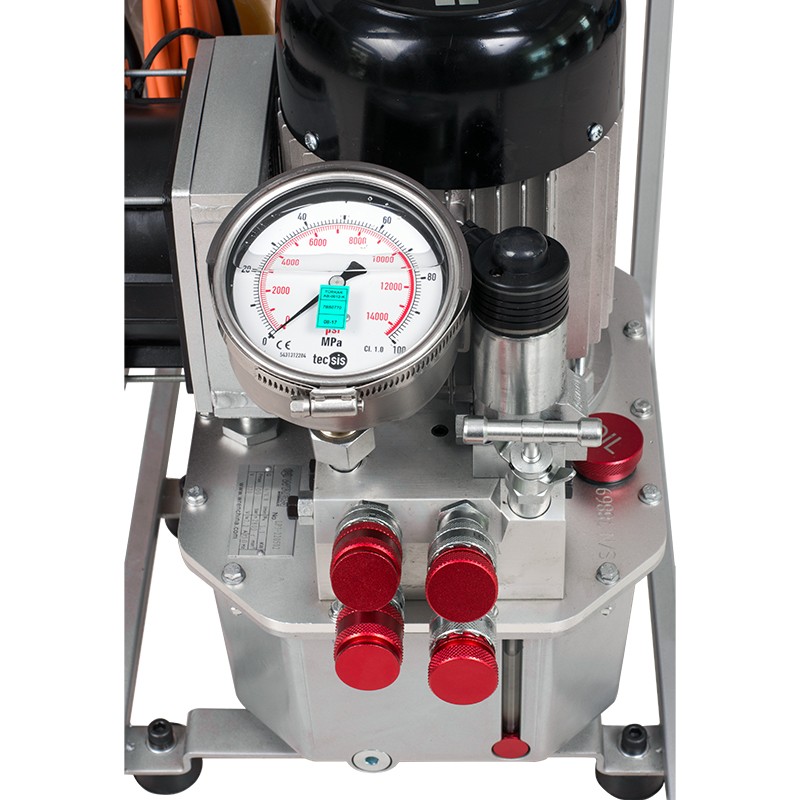

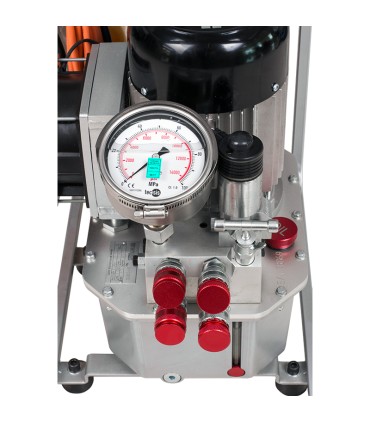

  • Accr. calibrated ø100mm gauge
  • 1000 bar gauge - 10 bar resolution
  • Pressure output port 4 x 1/4” NPT
  • Pump total weight incl. Oil 27 kg
  • Oil Cooling fan available

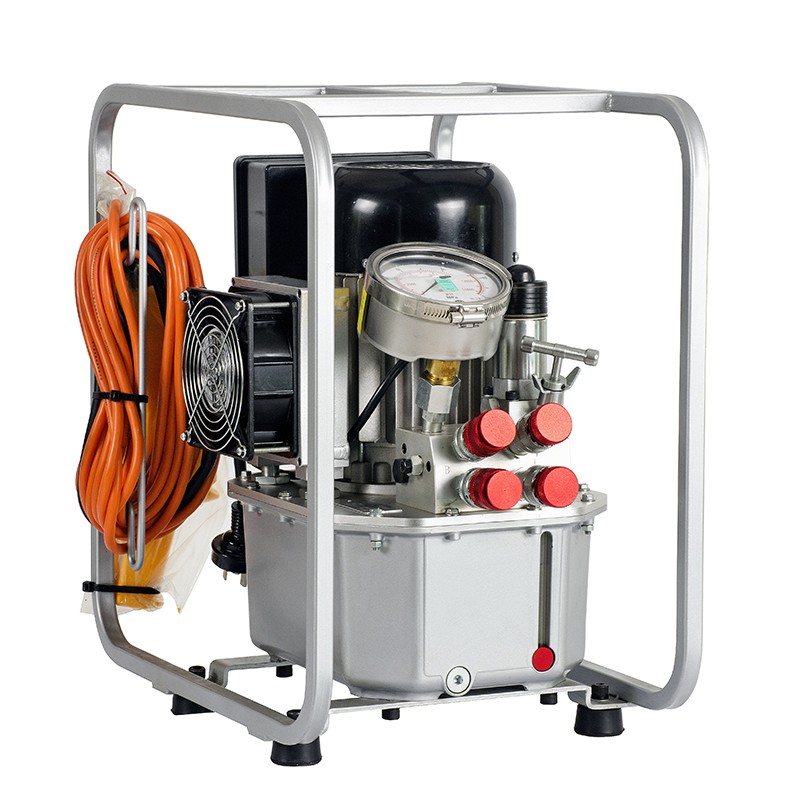

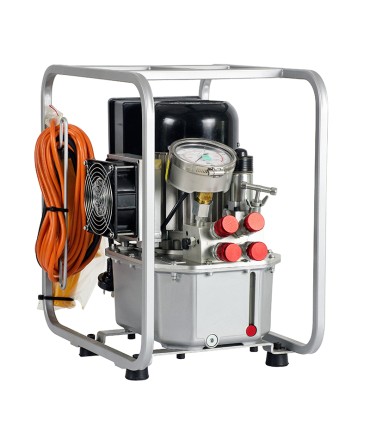

  • Pump supplied with protection frame
Read more

Genaral Features

  • Torc-Tech Hydraulic Torque Wrench Genaral Features
  • Tightening torque accuracy ±3%
  • 10 different models using impact sockets.
  • Capacity range from 112 to 72,000 N·m.
  • Durabile & reliabile through singlebody construction
  • Titanium-aluminum alloy, lightweight and strong.
  • Suitable for continuous heavy duty operation
  • Rotatable multi-position reaction arm with locking feature
  • Easily replaceable fine-thread square or Allen drive
  • 360° x 180° rotatable multi-position oil inlet port
  • Screw fastening coupling with locking mechanism
  • Laser-engraved pressure torque table on the body
  • Comprehensive accessories and drive options

https://www.torc-tech.com.tr/resimler/07ibt_torque_wrench_application_2.jpg

Attachments:

Product Datasheet Pressure Torque Table Exploded Drawing Calibration Certificate  User Manual EU Trademark



Torque Wrench Technichal Table

Model Capacity (N.m) Drive Weight
No Max. Min. inch Kg
07IBT 1.100 110 3/4”  1.8
1IBT 1.800 180 3/4”  2.5
3IBT  4.500 450 1”
5IBT  7.500 750 1.1/2”
8IBT  10.700 1.000 1.1/2” 11
10IBT  15.500 1.550 1.1/2”  15
20IBT  26.600 2.600 2.1/2”  26.5
25IBT  34.700 3.400 2.1/2” 35
35IBT  48.700 4.800 2.1/2”  50
50IBT  72.000 7.200 2.1/2”  87

Torque Wrench Size Table (mm)

Model L1 L2 L3 H1 H2 H3 H4 R1 R2 R3
07IBT 1101  139 46 42 66  76  108  20 68 54
1IBT  144 174 55 50 72 96 131 26 85 67
3IBT  178 <span style="font-size: 11pt; font-family: verdana, geneva, sans-serif; color:
Read more
LP3-2

Hexagon Range
50-105 mm
