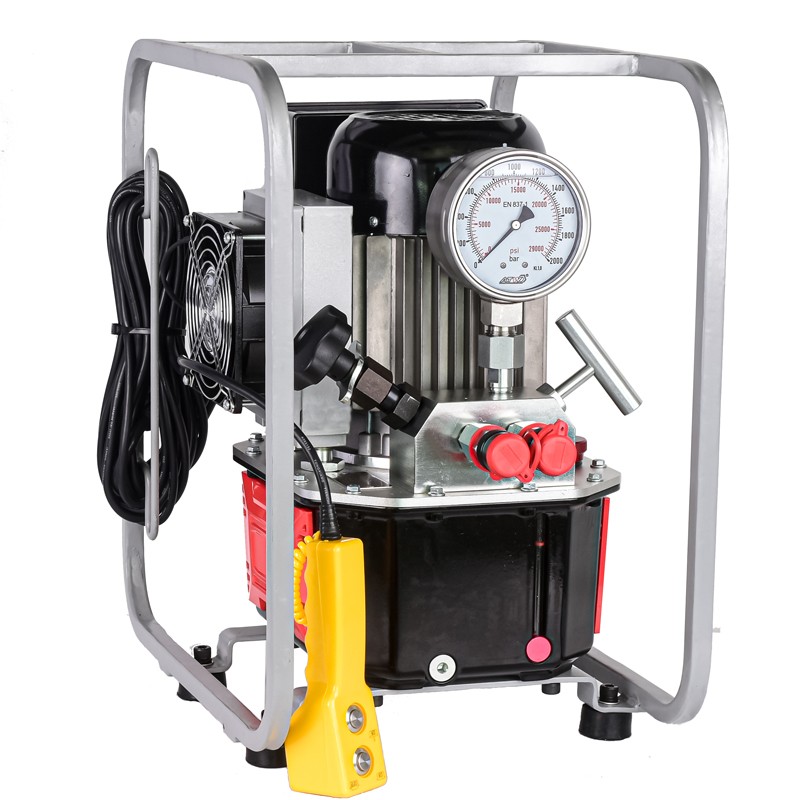

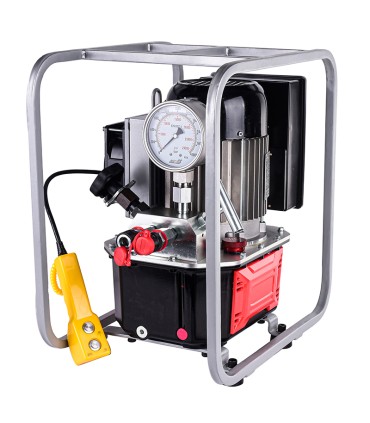

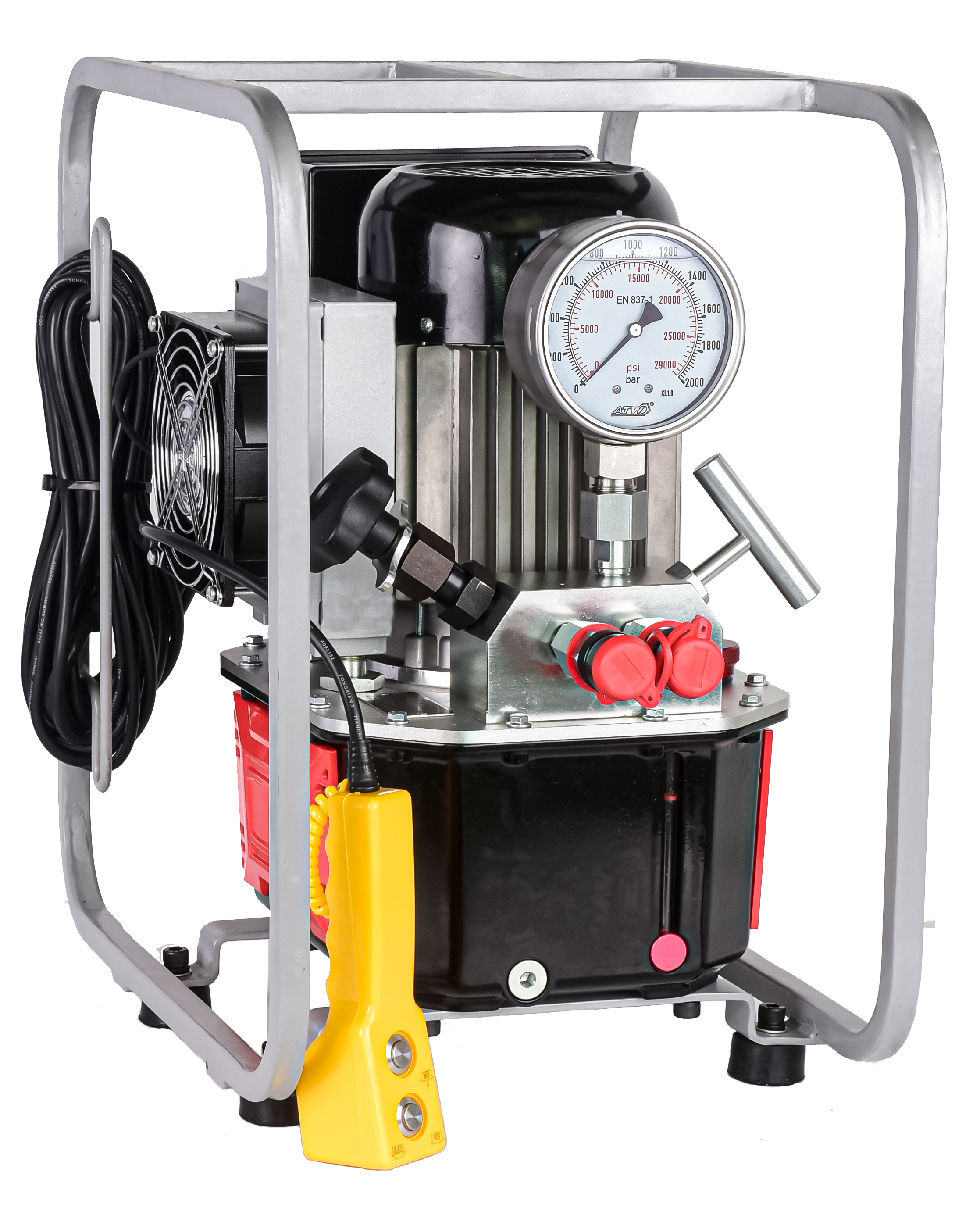

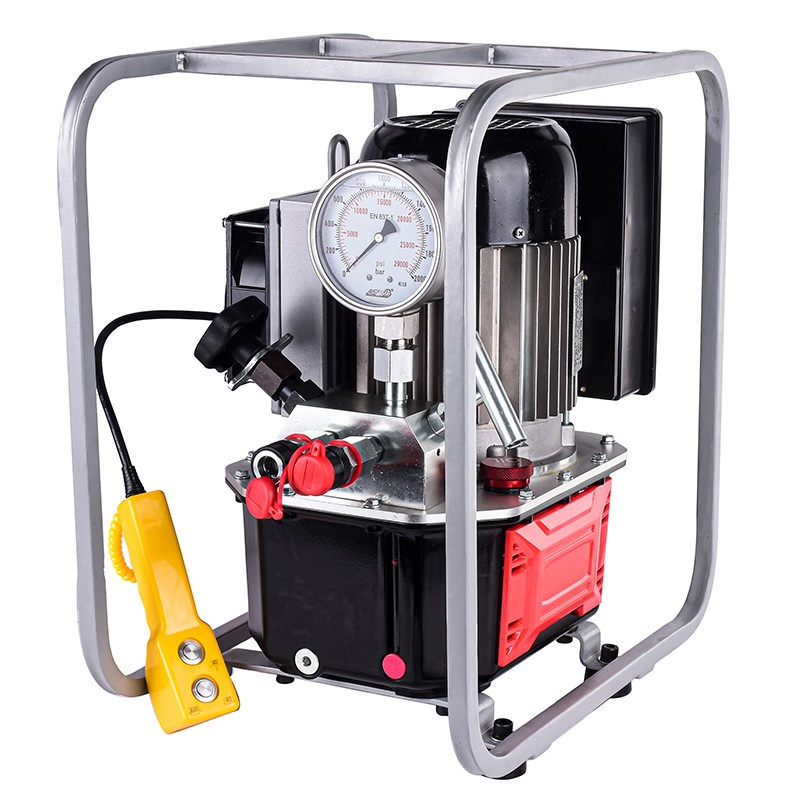

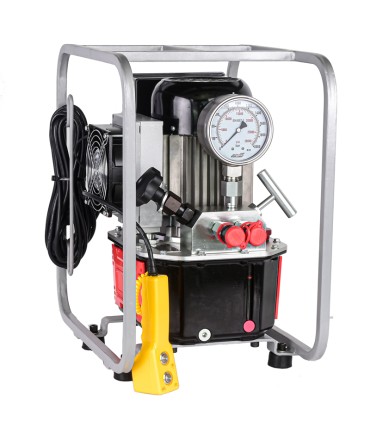

3000 Bar Electric Driven Bolt Tensioner Pump HLP3-30
- Product code HLP3-30
- Max. working pressure 3000 bar
- Single acting double speed pump
- Adjustable range 70 – 3.000 bar
- Flow rate in low pressure 5.5 L/min
- Flow rate in high pressure 0.3 L/min
- 230V/50Hz or 115V/60Hz available
- Electric engine power 1.1 kW
- Effective oil capacity 3,5 ltr
- Designed for bolt tensioning
- Pressure is stepless adjustable
- 2000 Bar ø100mm accurate gauge
- Pressure output port 2x G1/4” CMS
- Pump is equipped with cooling system
- Designed for heavy duty applications
- Pump protection frame available
- Pump total weight incl. Oil 27 kg
Torc-Tech 3000 Bar Bolt Tensioning Pump
The Torc-Tech HLP3-30 model electric motor driven hydraulic pump is designed for high-pressure test operations and bolt tensioning applications. The pump is equipped with pressure adjustment valve and pressure can be adjusted smoothly from 700 to 2000 bar. The HLP3-30 hydraulic pump has a two-speed hydraulic pump unit inside. It has an oil pumping capacity of 6 liters per minute at low pressure and 0.3 liters per minute at 3000 bar.
|
|
|
|
| Product Code | HLP3-30 |  |
| Working Pressure | 3000 Bar | |
| Pressure Range | 500 - 3000 Bar | |
| Pump Type | S/A - Double Speed | |
| Flow (low-high) | 6 - 0.3 lt/dk | |
| Voltage | 220V / 50Hz | |
| Power | 1.1 kW | |
| Oil Capacity | 5,5 liter | |
| Oil Output Port | 2 x G 1/4" | |
| Manifold for | 2 Tools | |
| Gauge | 3000 Bar -ø100 mm | |
| Pressure Adjustment | Available | |
| Protection Frame | Available | |
| Cooling Fan | Available | |
| Noise Level | ≤ 6 5db | |
| Weight | 27 kg | |
| Dimensions (LxWxH) | 419 x 292 x 434 mm |

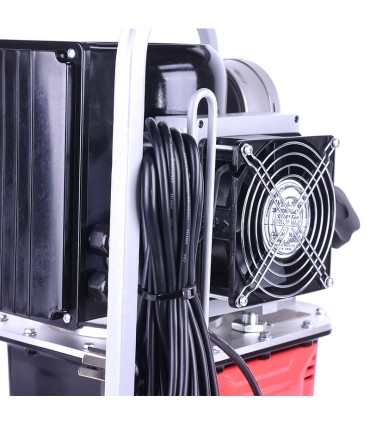

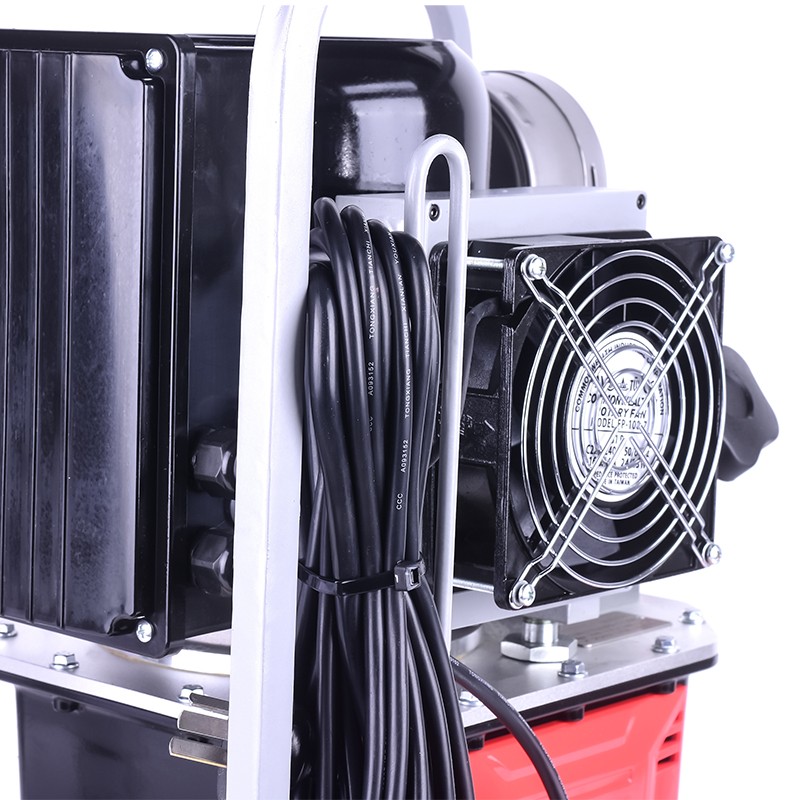

Cooling System – High Performance
The HLP3-30 3000 bar hydraulic bolt tensioning pump provides high performance with its 1.1 kW electric motor and it is equipped with cooling system. The hydraulic power unit is available in two versions: 220V/50Hz and 115V/60Hz.

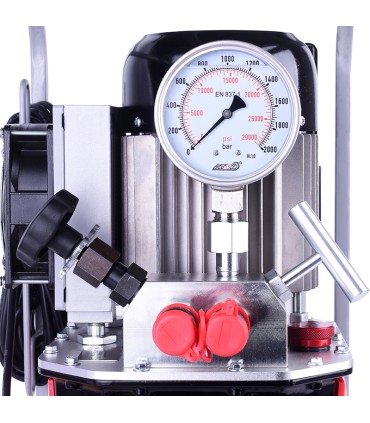

Dual Pressure Output – 3000 Bar Pressure Gauge
The HLP3-30 3000 bar hydraulic power unit is equipped with dual pressure output ports. The connection is made with G1/4” metal contact sealing technology. Two pressure ports, allowing two devices to be pressurized simultaneously.
