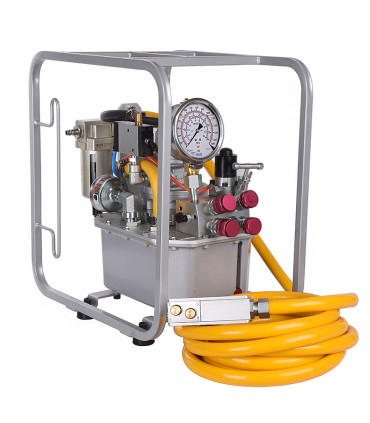

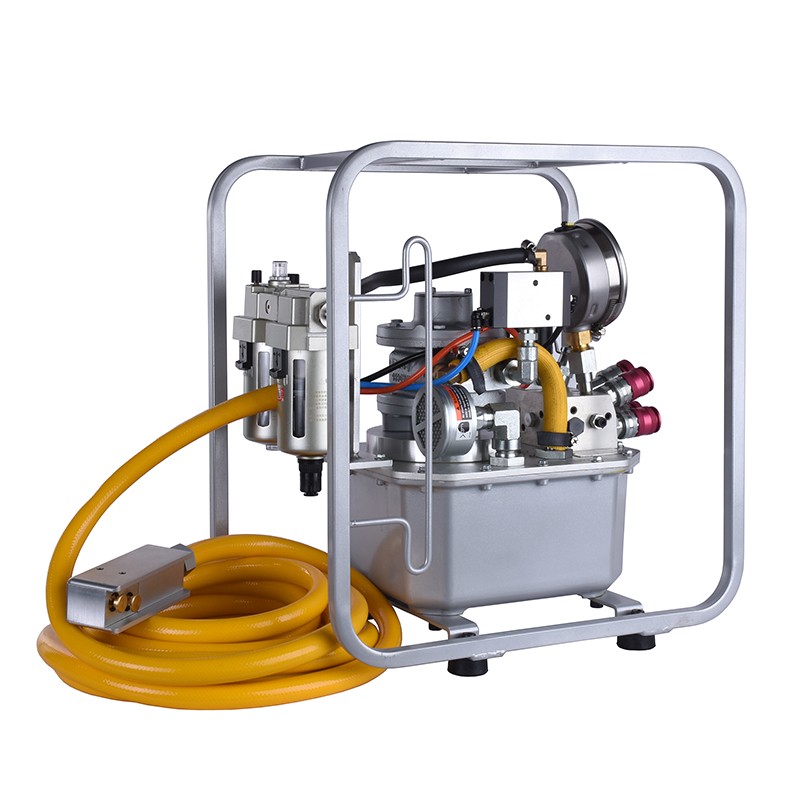

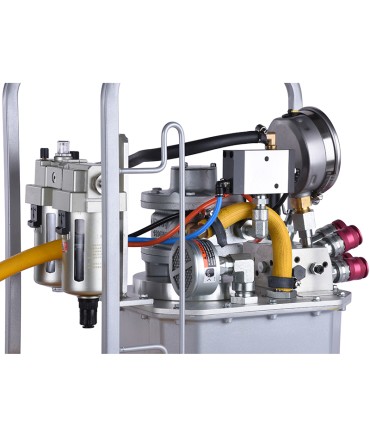

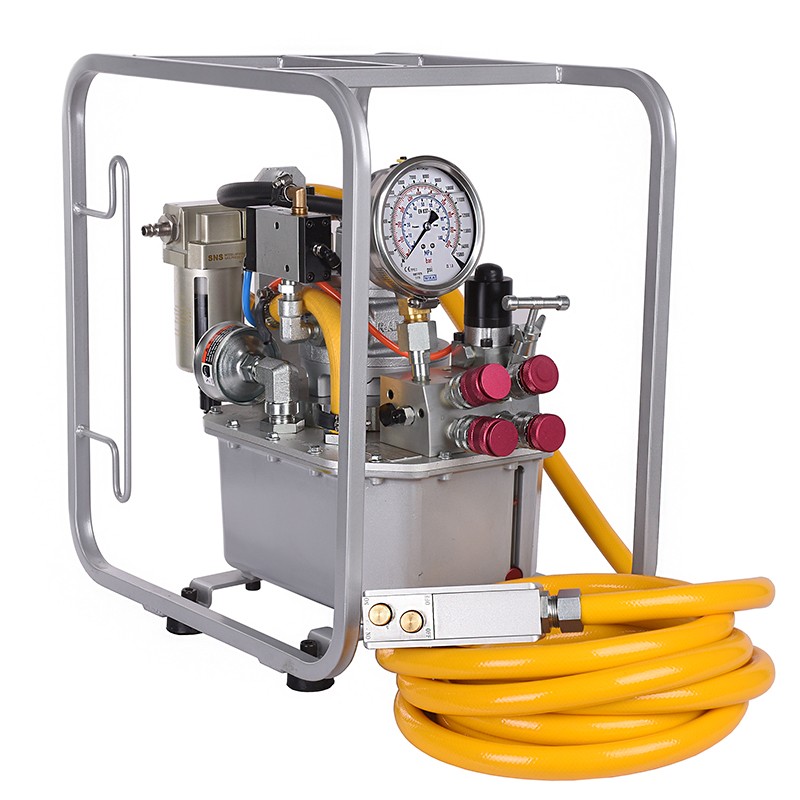

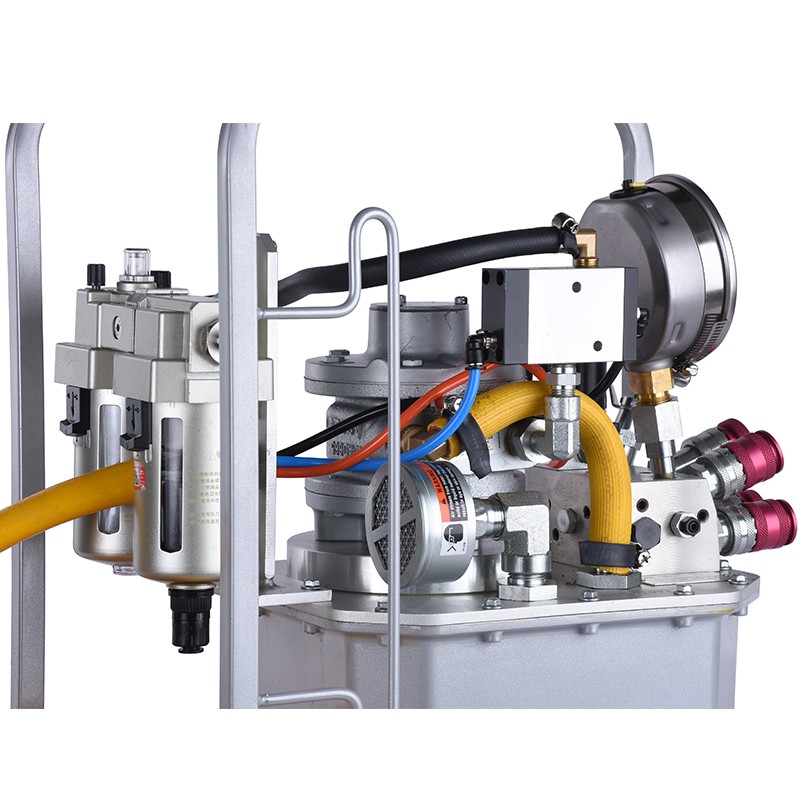

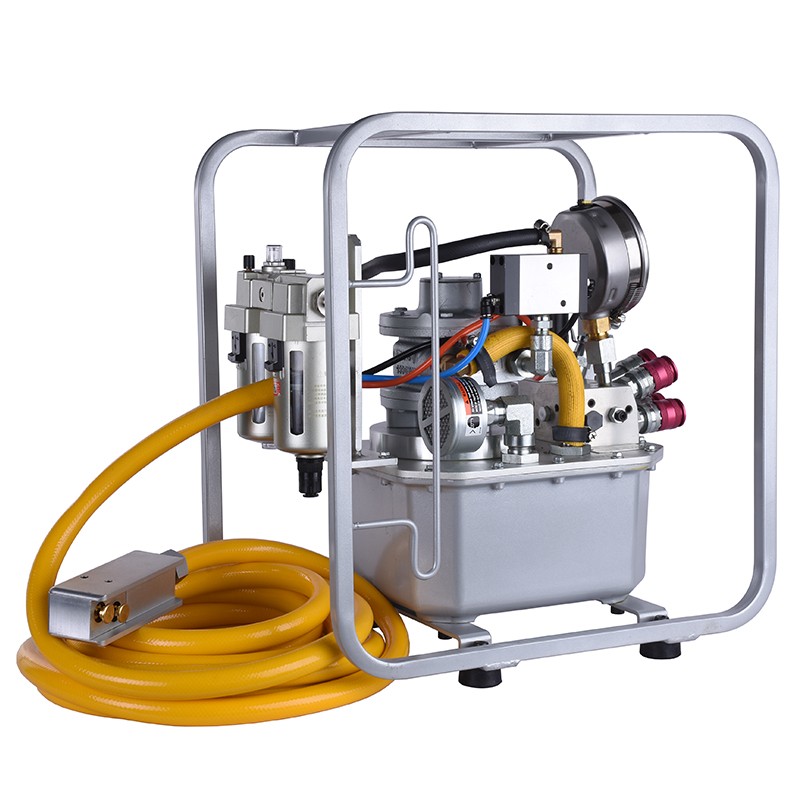

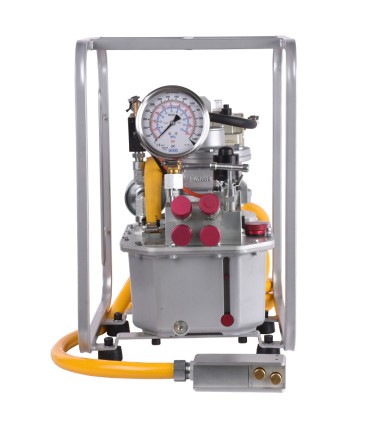

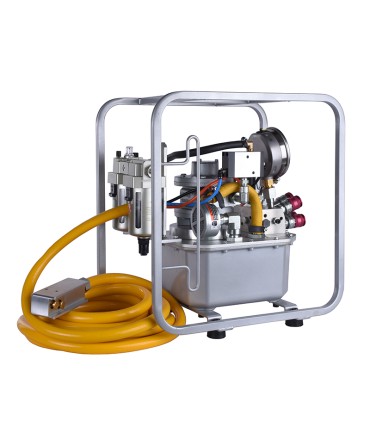

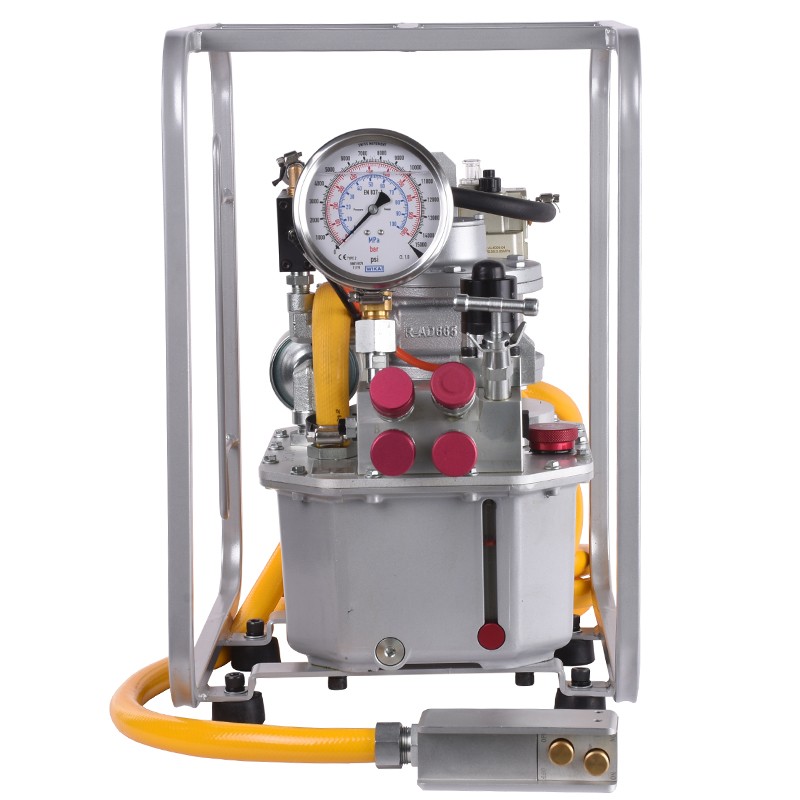

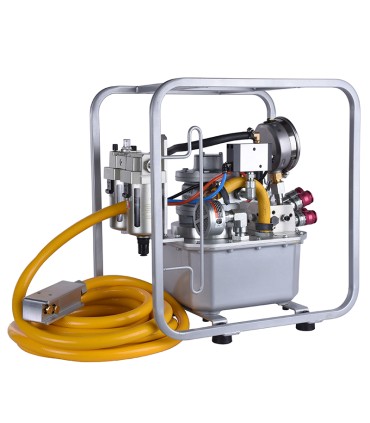

4VN-2 Hydropnomatic Torque Wrench Pump 700 Bar

4VN-2 Hydropnomatic Torque Wrench Pump 700 Bar

Product code 4VN-2
Working pressure 700 bar
Three stage pump hydraulic pump
Oil flow rate 10 – 2,2 – 1,1 l/m
Air driven motor 3.0 kW
Efective oil capacity 5,5 ltr
Designed for two torque tools
Pressure is stepless adjustable
Accr. calibrated ø100mm gauge
1000 bar gauge - 10 bar resolution
Pressure output port 4 x 1/4” NPT
Oil Cooling fan available
Pump protection frame available
Pump total weight incl. Oil 25 kg

Request A Qoute

4VN- High Performance Air Driven Torque Wrench Pump

Torc-Tech 4VN torque wrench hydraulic pump powered with three stage hydraulic unit. This enables typical flow up to 10 liter per minutes. Two models available:

4VN-2 torque wrench pump with 4 port manifold for 2 tools
4VN-4 torque wrench pump with 8 port manifold for 4 tools

Datasheet

4VN-2 Hydropnomatic Torque Wrench Pump

User Manual

4VN-2 Hydropnomatic Torque Wrench Pump

Pneumatic Torque Pumps	Units	4VN-2	4VN-4
Working Pressure (max)	bar	700	700
Flow Rate	Ltr/min	10 - 2.2 - 1.1	10 - 2.2 - 1.1
Required Air Pressure	bar	4 - 8	4 - 8
Air Motor Power	kW	3	3
Air Consumption	ltr/min	3400	3400
Effective Oil Capacitiy	Ltr	5.5	5.5
Suitable for	#	2 Tools	4 Tools
Oil Output Port Thread	Npt	4 x 1/4" NPT	8 x 1/4" NPT
Gauge Diameter (ø)	mm	100	100
Gauge Scale Range	bar	0….1.000	0….1.000
Pressure Resolution	bar	10	10
Pressure Units on Scale	#	Bar / Psi / Mpa	Bar / Psi / Mpa
Tool Weight incl. Oil.	kg	25	26

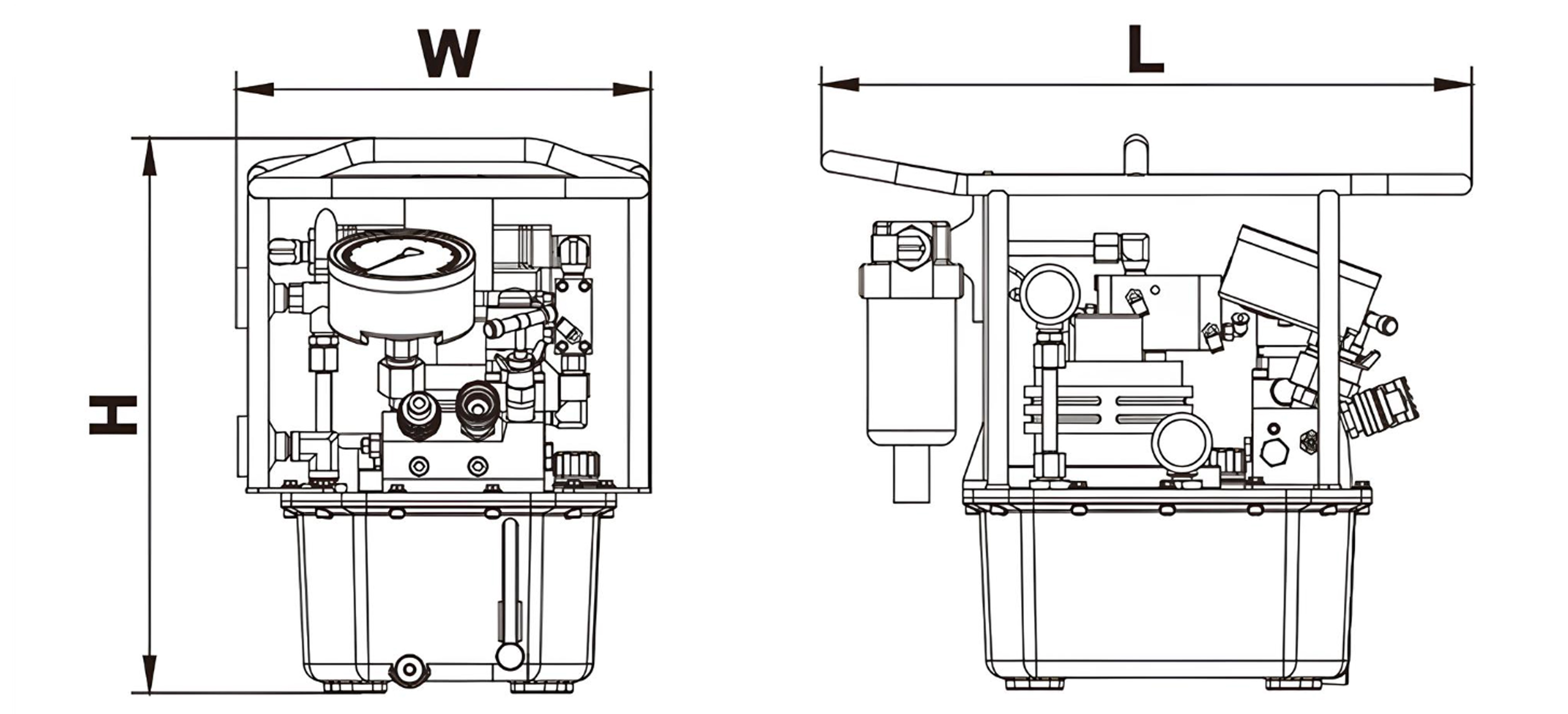

Dimensions (LxWxH)	mm	442 x 282 x 377	460 x 282 x 377

Key Features:

Three-Stage Hydraulic Pump: The pump utilizes a three-stage system to efficiently handle different pressure requirements and flow rates.
Oil Flow Rate: The pump offers adjustable oil flow rates of 10 l/m, 2.2 l/m, and 1.1 l/m, ensuring optimal performance for various tasks.
Air Motor: The pump is powered by a pneumatic motor with a power output of 3.0 kW, making it energy-efficient and reliable.
Effective Oil Capacity: It has a large 5.5-liter oil capacity, providing long-lasting operation without frequent refills.
Designed for Two Torque Tools: The 4VN-2 is specifically designed to operate with two torque tools simultaneously, increasing productivity and efficiency in demanding environments.
Stepless Pressure Adjustment: The pressure can be adjusted steplessly, allowing for precise control and versatility.

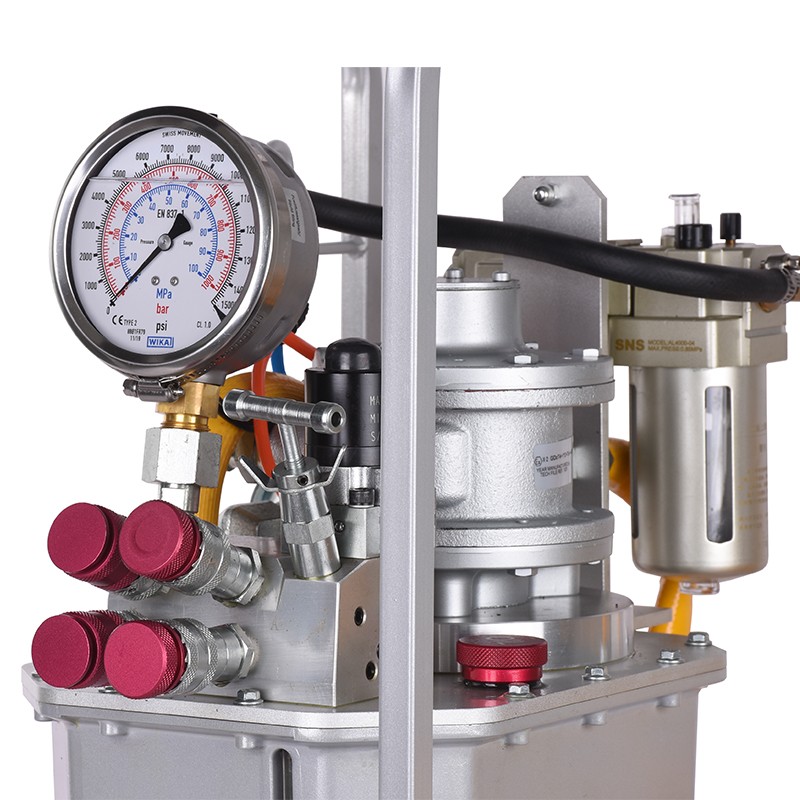

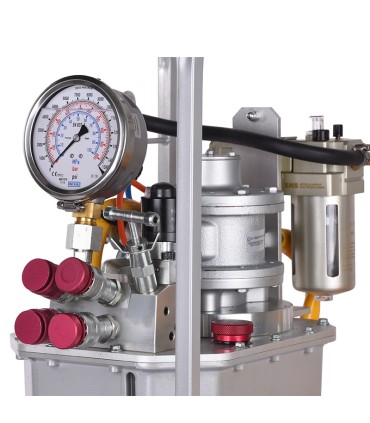

Calibrated Gauge: The ø100mm pressure gauge is accurately calibrated, with a pressure range of up to 1000 bar and a 10 bar resolution, ensuring precise pressure readings.
Multiple Pressure Output Ports: The pump features 4 x 1/4” NPT pressure output ports, allowing for easy connection to different hydraulic tools and systems.
Oil Cooling Fan: To ensure optimal operation and prevent overheating, the pump comes with an oil cooling fan option.
Pump Protection Frame: The pump includes an optional protection frame, which enhances durability and safeguards the pump during operation.
Total Weight (including oil): The total weight of the pump, including oil, is 25 kg, making it portable and easy to transport.

Ideal for Industrial Applications:

The 4VN-2 hydraulic pump is designed for use in high-demand environments where performance, durability, and precision are essential. It is perfect for powering two torque tools at once, with the ability to adjust pressure and flow rates to suit a wide range of tasks. Whether you need to work in tight spaces or need reliable power for extended periods, this pump will deliver consistent performance.
