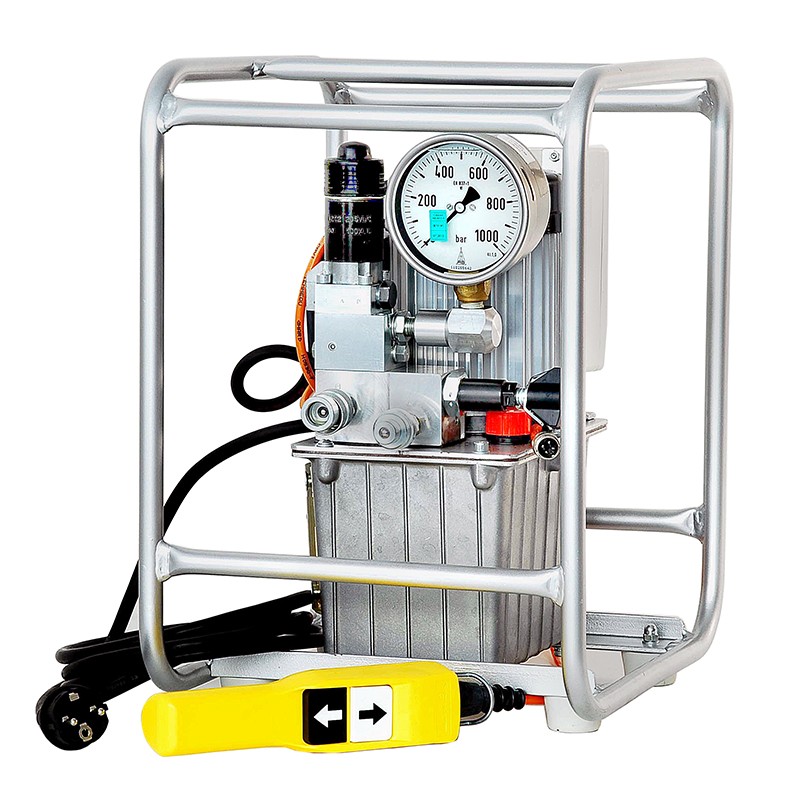

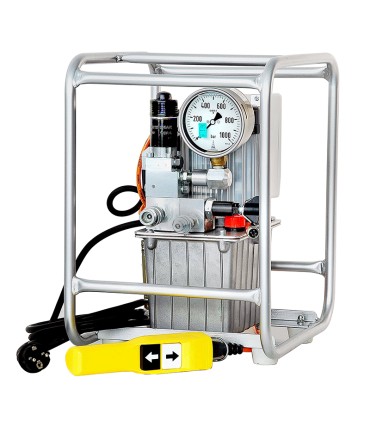

HE055-2-230 Hydraulic Torque Wrench Pump 800 Bar
- Produtct Code: HE055-2-230
- Working pressure 800 Bar
- Oil flow rate 5,0 – 0,7 ltr/min
- Portable two stage torque pump
- Electric engine 220V 50 Hz - 0,37 kW
- Lighweight. Only 29 kg with oil
- Efective oil capacity 5 liter
- Equipped with cooling system
- Designed for one torque tool
- Oil output 2x 1/4" NPT
- Stepless pressure adjustment
- Noise level 82 dbA
- Pressure adjustment 75-800 bar
- Ø100mm calibrated pressure gauge
- German made by Dahlmann GmbH
- Supplied with protecting metal frame
2 Stage Portable Hydraulic Torque Wrench Pump
Torc-Tech HE055-2-230 hydraulic torque wrench pump provides high efficiency in a small size. The pump offers 5 liters flow at 70 bar per minutes. HE055-2-230 model torque pump has two-stage piston structure and equipped with a 0.37 kW electro engine HE055-2-230 hydraulic torque pump is designed to work with only one torque device at a time with a 5 liter oil tank. Flow rate according to the stages is 5,0 – 0,7 ltr/min.
|
|
|
|
| Model No | Working Pressure | Effective Oil Volume | Flow | Motor | Gauge | Weight | |
| # | bar | L | L/min | V/Hz*/kW | (FxAxB) mm | kg | |
| HE-025-3-230 | 800 | 3 | 3,2 L/min -0,9L/min 0,4L/min | 220V 50 Hz, 0,25 | 36 x 30 x 44 | 20,3 | |
| HE-055-2-230 | 800 | 5 | 5,0 L/min-0,7 L/min | 220V 50 Hz, 0,37 | 45 x 34 x 52 | 29 | |
| FE-055-3 | 800 | 6 | 6,5 L/min - 1,8 L/min- 0,7 L/min | 220V 50 Hz, 0,55 | 40 x 28 x 40 | 30 | |
| FE-110-3 | 800 | 6 | 8,5 L/min - 3,4 L/min- 1,3 L/min | 220V 50 Hz, 1,10 | 46 x 30 x 44 | 36 | |
