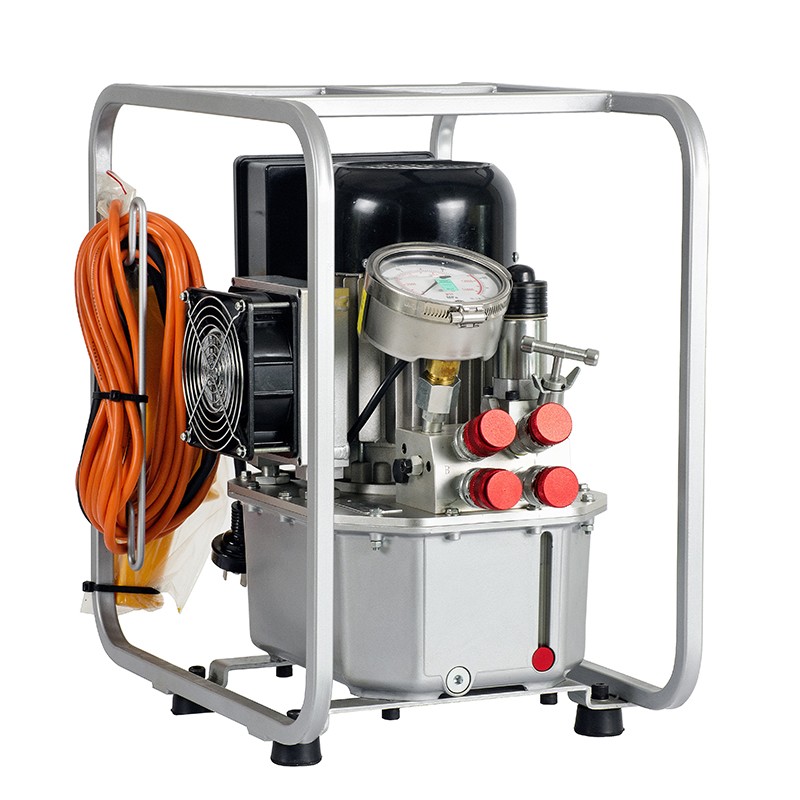

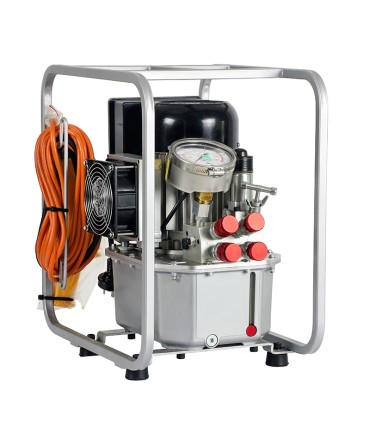

LP3-2 700 Bar Hydraulic Torque Wrench Pump
- Product code LP3-2
- Working pressure 700 bar
- Three stage torque wrench pump
- Oil flow rate 7 - 1,6 - 0,8 l/m
- Electric motor 230V/50Hz 1.1 kW
- Efective oil capacity 5,5 ltr
- Designed for two torque tools
- Pressure is stepless adjustable
- Accr. calibrated ø100mm gauge
- 1000 bar gauge - 10 bar resolution
- Pressure output port 4 x 1/4” NPT
- Pump total weight incl. Oil 27 kg
- Oil Cooling fan available
- Pump supplied with protection frame
LP3 High Performance Torque Wrench Pump
The Torc-Tech LP3 is an electric motor-driven hydraulic pump equipped with a three-stage hydraulic unit.
This system enables a typical flow rate of up to 7 liters per minute. Two models are available:
- LP3-2 torque wrench pump with a 4-port manifold for 2 tools
- LP3-4 torque wrench pump with an 8-port manifold for 4 tools
Specifications | Unit | LP3-2 | LP3-4 |
Working Pressure | bar | 700 | 700 |
Pumping Flow Rate | Ltr/min | 7.0 - 1.6 - 0.8 | 7.0 - 1.6 - 0.8 |
Operating Voltage | # | 200V / 50 Hz | 200V / 50 Hz |
Electric Motor Power | kW | 1.1 | 1.1 |
Effective Oil Capacity | Ltr | 5.5 | 5.5 |
Connectable Torque Tools | # | 2 Tools | 4 Tools |
Oil Output Ports | Npt | 4 x 1/4" | 8 x 1/4" |
Gauge Diameter (ø) | mm | 100 | 100 |
Pressure Range | bar | 0…700 - 0…1000 | 0…700 - 0…1000 |
Scale | bar | 10 | 10 |
Pressure Unit | # | Bar / Psi / Mpa | Bar / Psi / Mpa |
Cooling Fan | # | Available | Available |
Protection Frame | # | Available | Available |
Weight | kg | 27 | 27 |

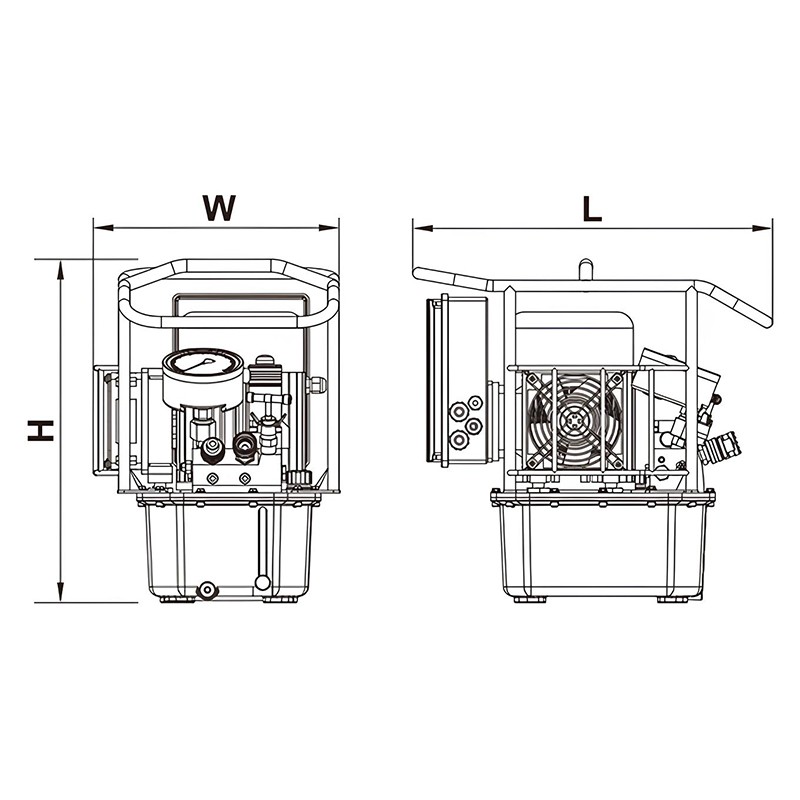

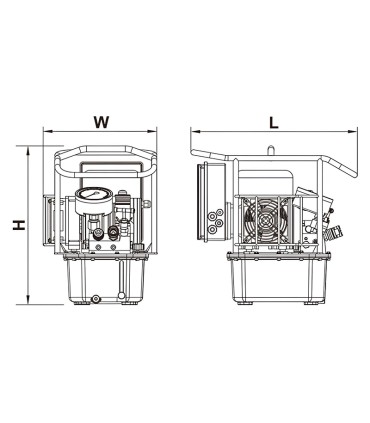

Dimensions (W x D x H) | mm | 445 x 304 x 426 | 461 x 304 x 426 |
Key Features:
Three-Stage Hydraulic Pump: The pump uses a three-stage system to efficiently manage different pressure requirements and flow rates.
Oil Flow Rate: Adjustable oil flow rates of 7.0 l/min, 1.6 l/min, and 0.8 l/min provide optimal performance for various tasks.
Electric Motor: Powered by a 230V/50Hz electric motor with a power output of 1.1 kW, offering energy efficiency and reliability.
Effective Oil Capacity: Large 5.5-liter oil capacity ensures long operation times without frequent refilling.

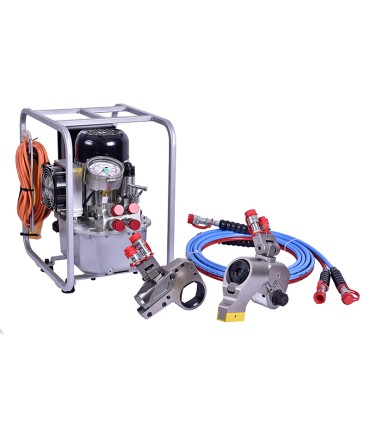

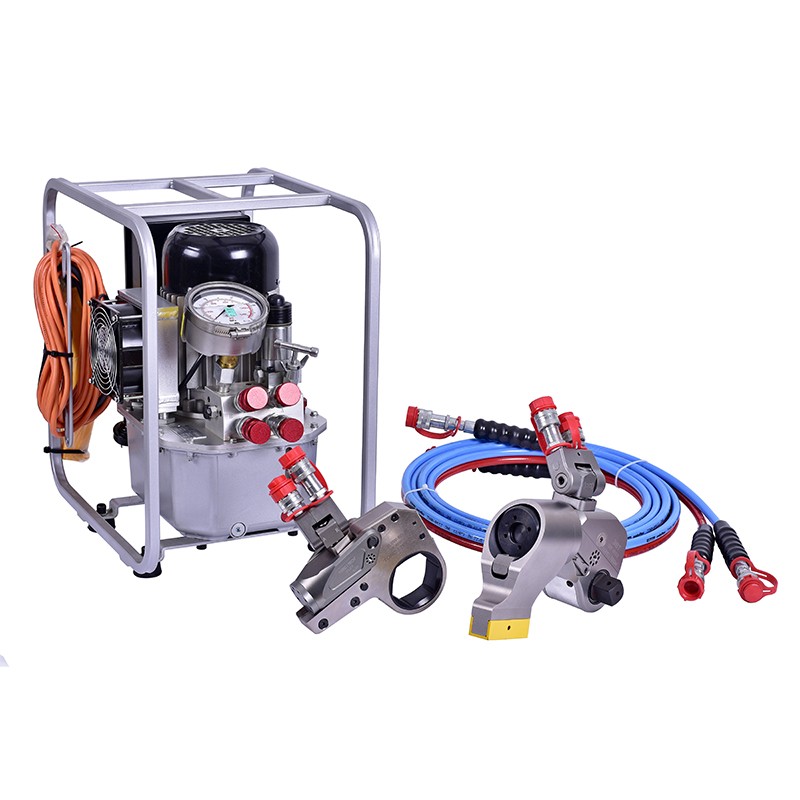

Designed for Two Torque Tools: The LP3-2 is specifically designed to operate two torque tools simultaneously, increasing productivity and efficiency in demanding environments.
Stepless Pressure Adjustment: Pressure can be adjusted steplessly for precise control and flexibility.

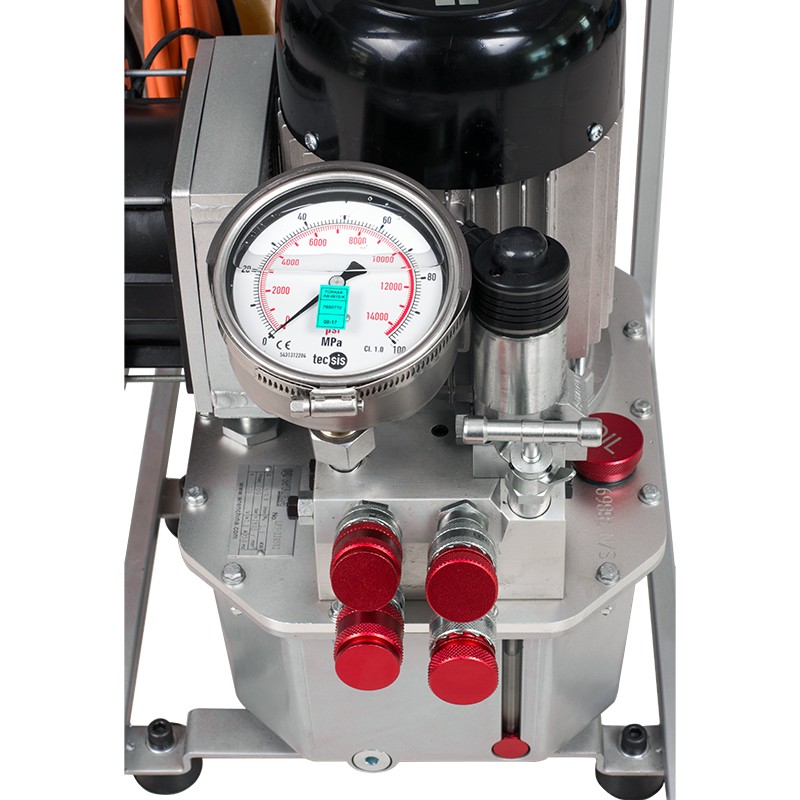

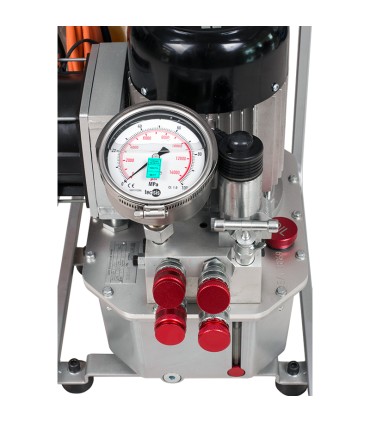

Calibrated Gauge: The ø100 mm pressure gauge is accurately calibrated, with a pressure range up to 1000 bar and a 10-bar resolution for precise readings.
Multiple Pressure Output Ports: Equipped with 4 x 1/4” NPT pressure output ports for easy connection to various hydraulic tools and systems.
Oil Cooling Fan: Includes an optional oil cooling fan to ensure optimal operation and prevent overheating.
Pump Protection Frame: An optional protective frame enhances durability and protects the pump during operation.
Total Weight (including oil): The total weight of the pump, including oil, is 27 kg, making it portable and easy to transport.
Ideal for Industrial Applications:
The LP3-2 hydraulic pump is built for high-demand environments where performance, durability, and precision matter. It's perfect for powering two torque tools at once, with adjustable pressure and flow settings to suit various tasks. Whether you're working in confined spaces or need reliable, long-lasting power, this pump delivers consistent performance.
