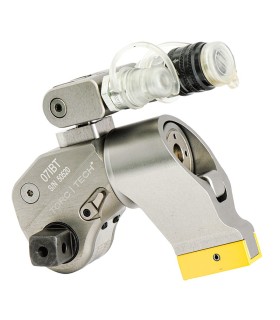

Model code : 07IBT
Capacity range: 110 – 1100 Nm
Square drive : 3/4” inch
Working pressure 700 bar max
Tightening torque accuracy ±3%.
Optimum socket height: 60-70mm
Aluminium-titanium alloy body...
Bolting Tools

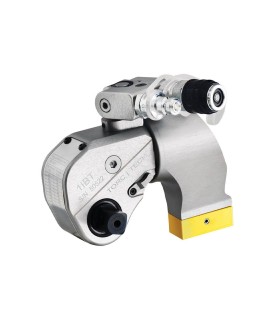

Model code : 1IBT
Capacity range: 180 – 1800 N.m
Square drive : 3/4” or 1” inches
Working pressure 700 bar max
Tightening torque accuracy ±3%.
Optimum socket height: 65-75mm
Aluminium-titanium alloy body...

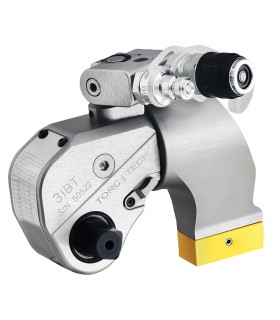

Model code : 3IBT
Capacity range: 450 – 4500 N.m
Square drive : 1.0” inch
Working pressure 700 bar max
Tightening torque accuracy ±3%.
Optimum socket height: 65-75mm
Aluminium-titanium alloy body
Screw type...

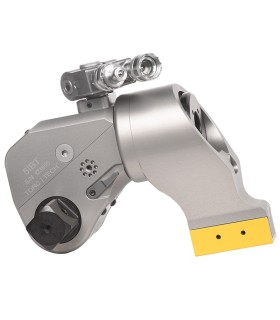

Model code : 5IBT
Capacity range: 750 – 7500 N.m
Square drive : 1.1/2” inch
Working pressure 700 bar max
Tightening torque accuracy ±3%.
Optimum socket height: 75-95mm
Aluminium-titanium alloy body
Screw type...

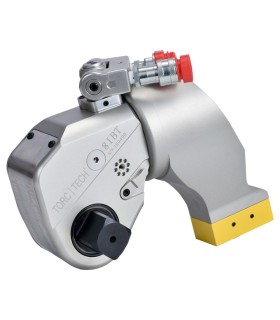

Model code : 8IBT
Capacity range: 1000 – 10.700 N.m
Square drive : 1.1/2” inch
Working pressure 700 bar max
Tightening torque accuracy ±3%.
Optimum socket height: 95-115mm
Aluminium-titanium alloy body
Screw...

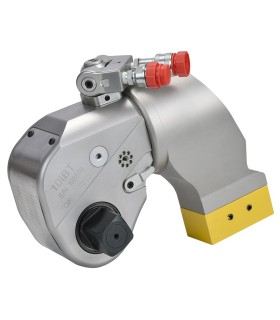

Model code: 10IBT
Capacity range: 1500 – 15,500 Nm
Square drive: 1.1/2” inch
Working pressure: 700 bar max
Tightening torque accuracy: ±3%
Optimum socket height: 115-130 mm
Aluminium-titanium alloy body...

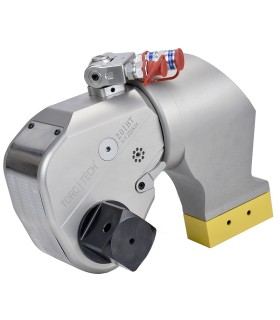

Model code: 20IBT
Capacity range: 2600 – 26,000 Nm
Square drive: 1.1/2” inch
Working pressure: 700 bar max
Tightening torque accuracy: ±3%
Optimum socket height: 115-130 mm
Aluminium-titanium alloy body...

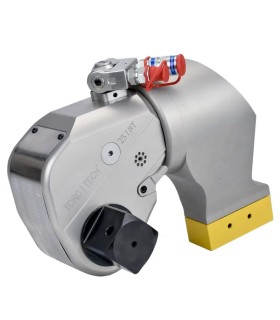

Model code: 25IBT
Capacity range: 3,400 – 34,000 Nm
Square drive: 1.1/2” inch
Working pressure: 700 bar max
Tightening torque accuracy: ±3%
Optimum socket height: 115-130 mm
Aluminium-titanium...
