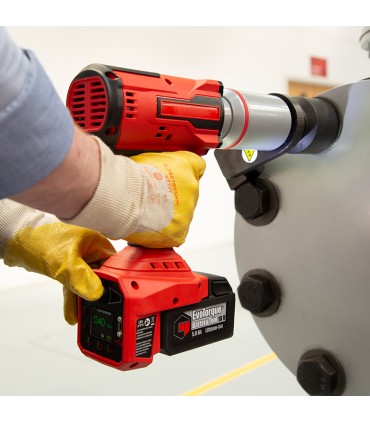

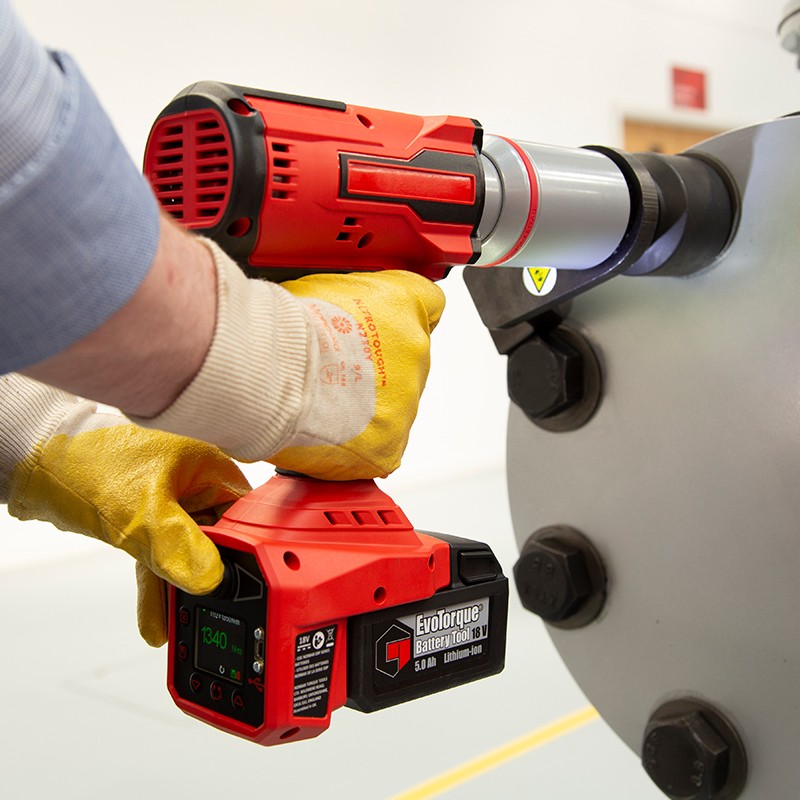

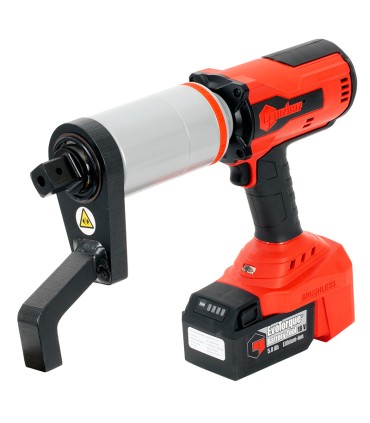

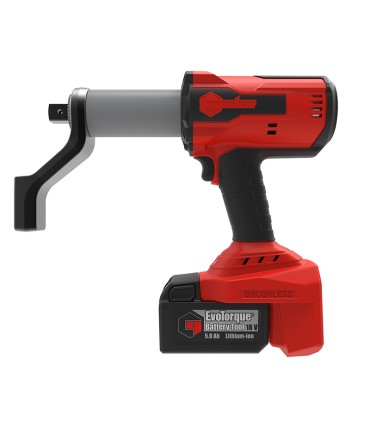

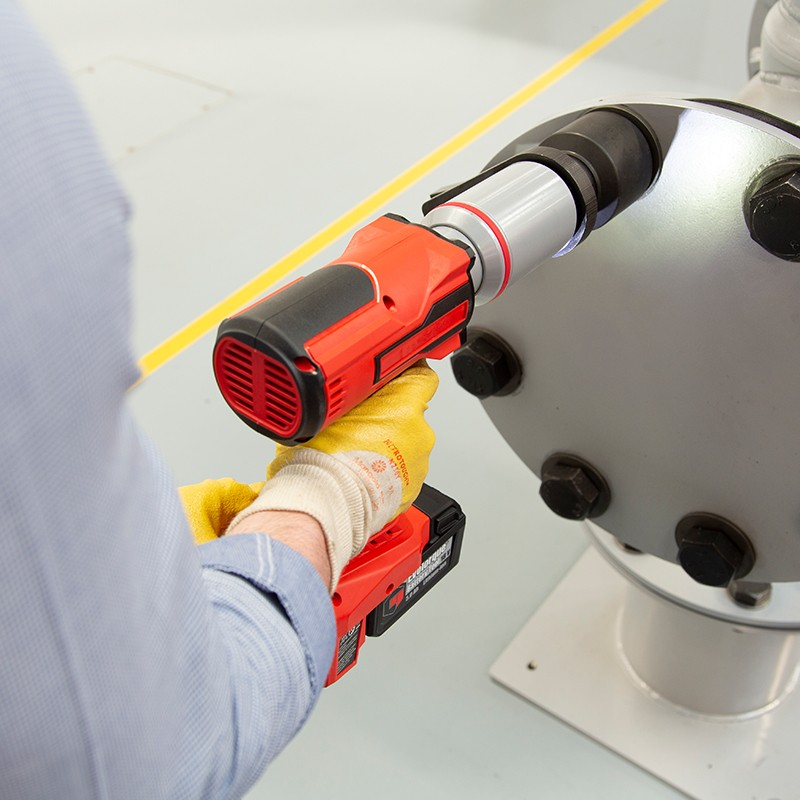

High-Performance Battery Torque Tools
The EvoTorque® Battery Tool (EBT) features a new brushless motor, data memory and data transfer capabilities. Norbar have combined this with their respected gearboxes to deliver a range of fast, reliable, accurate battery torque tools.
Technical Specification
- Supplied with a traceable calibration certificate.
- Key lock feature prevents unauthorised usage.
- Tool is not constrained by power cable or hose, improving safety, convenience and versatility.
- 18V, 5.0Ah battery and efficient motor give outstanding fastening performance per charge.
- OLED display ensures visibility in all conditions.
- High-powered LED to illuminate poorly lit applications.
- 'Torque Only' mode provides the user with 'ease of use' functionality, aiding tool familiarity.
- Bespoke reactions available on request.
- Software can be updated remotely, without the need to return the product to Norbar.
Torque Table
| Model |
Torque Range |
Square Drive |
Speed |
Dia. |
Torque Type |
Wireless |
| # |
N.m |
lbf.ft |
Inch |
rpm |
ø, mm |
# |
# |
| 180850 |
100 - 800 |
74 - 600 |
3/4" |
11.2 |
52 |
Single Speed - Single Trigger |
Available |
| 180866 |
100 - 800 |
74 - 600 |
3/4" |
11.2 |
52 |
Single Speed - Single Trigger |
Non-Available |
| 180349 |
100 - 800 |
74 - 600 |
3/4" |
11.2 |
52 |
Single Speed - Dual Trigger |
Available |
| 180365 |
100 - 800 |
74 - 600 |
3/4" |
11.2 |
52 |
Single Speed - Dual Trigger |
Non-Available |

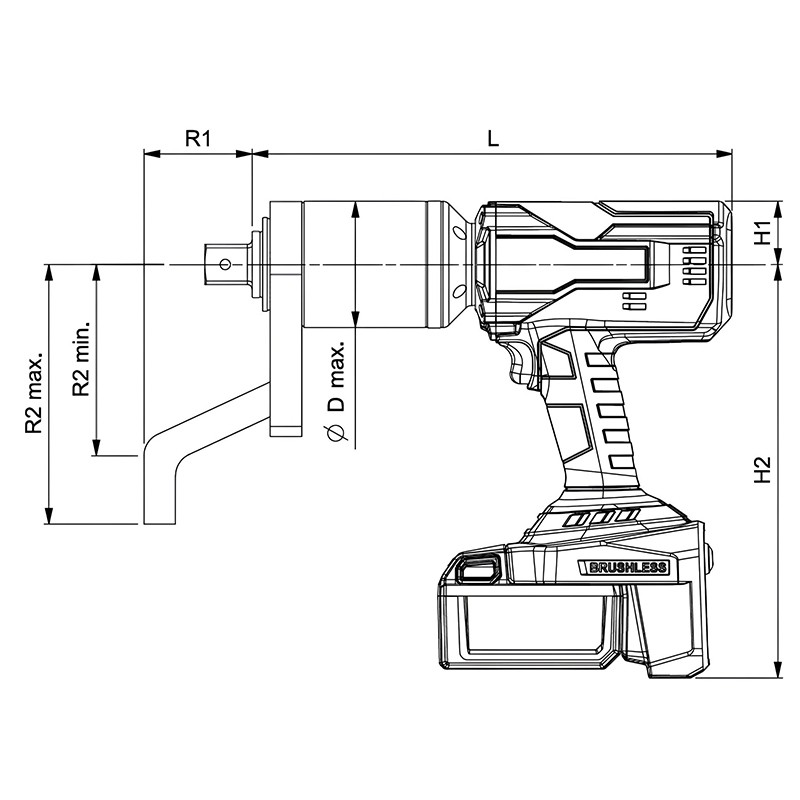

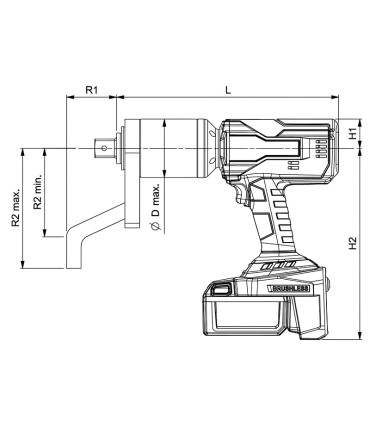

Torque Wrench Size Table (mm)
| Model |
H1 |
H2 |
H4 |
L |
L1 |
L2 |
R1 |
R2 min |
R2 max |
Weight |
| # |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
| 180850 |
40 |
262 |
28 |
271 |
269 |
235 |
59 |
68 |
131 |
6.9 |
| 180866 |
40 |
262 |
28 |
271 |
269 |
235 |
59 |
68 |
131 |
6.9 |
| 180349 |
40 |
262 |
28 |
271 |
269 |
235 |
59 |
68 |
131 |
6.9 |
| 180365 |
40 |
262 |
28 |
271 |
269 |
235 |
59 |
68 |
131 |
6.9 |
