Hydraulic Bolt Tensioner

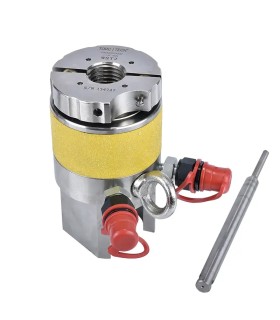

140 kN Subsea Bolt Tensioner

Model code: WST1 Capacity range 140 kN Sizes M20 to M22 - 3/4” - 7/8” Piston stroke up to 30 mm except WST1 Working pressure 1500 bar maximum Twin in-output ports in each load cell Special...

Model code WST2 Capacity range 237 kN Sizes M24 to M30 and 1” , 1-1/8” Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin in-output...

380 kN Subsea Bolt Tensioner

Model code:WST3 Capacity range 379 kN Sizes M33 to M36 and 1-1/4”, 1-3/8 Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin...

550 kN Subsea Bolt Tensioner

Model code WST4 Capacity range 551 kN Sizes M39 to M42 and 1-1/2”, 1-5/8” Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin...

880 kN Subsea Bolt Tensioner

Model code:WST5 Capacity range 880 kN Sizes M45 to M52 and 1-3/4”, 2” Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin in-output...

1565 kN Subsea Bolt Tensioner

Model code WST6 Capacity range 1564 kN Sizes M56 to M70 and 2-1/4”, 2-3/4” Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin...

2420 kN Subsea Bolt Tensioner

Model code:WST7 Capacity range 2419 kN Sizes M76 to M90 and 3”, 3-1/2” Piston stroke up to 30 mm except WST1 7 different load cells cover all ranges Working pressure 1500 bar maximum Twin...

307 kN Multi-Stage Tensioner HTE-24

Model Code: HTE24 Tensioning Capacity: 307 kN (30 tons) Bolt Compatibility: Designed for M24 bolts Maximum Stroke: 7 mm Operating Pressure: 1350 bar Mechanism: Spring return with multistage systems...
