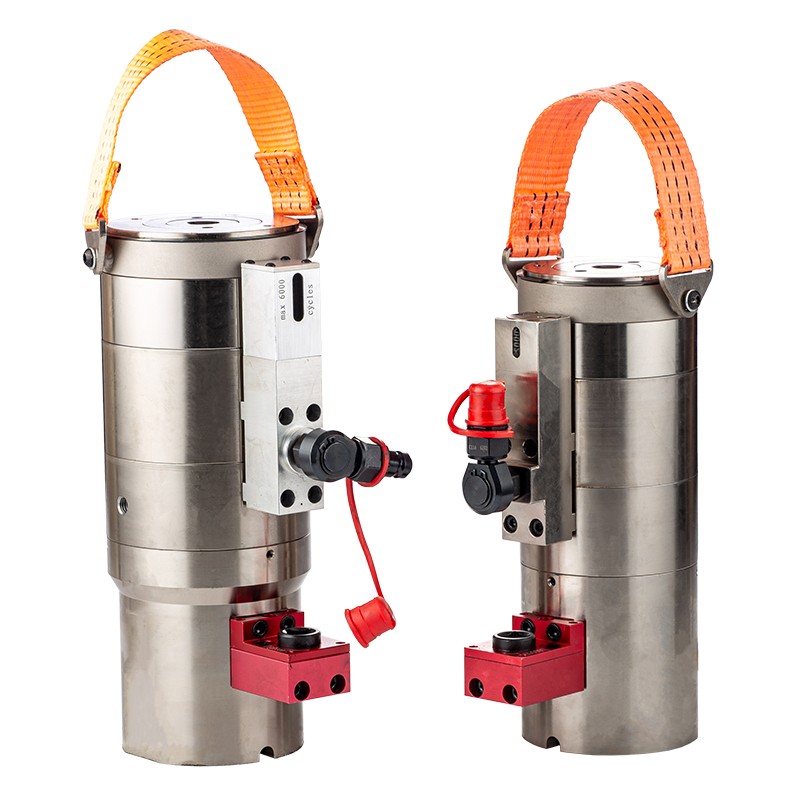

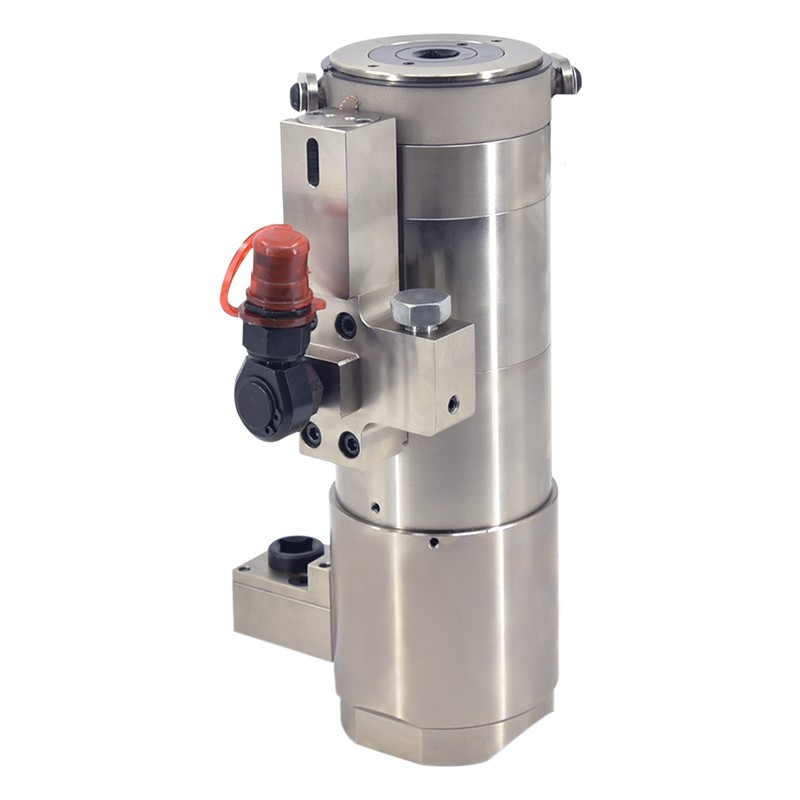

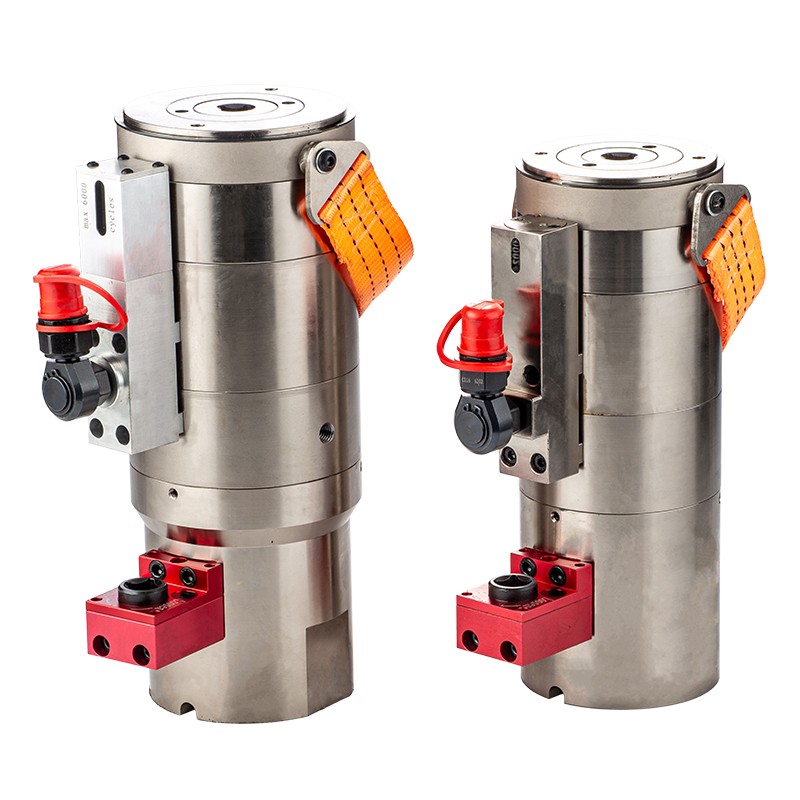

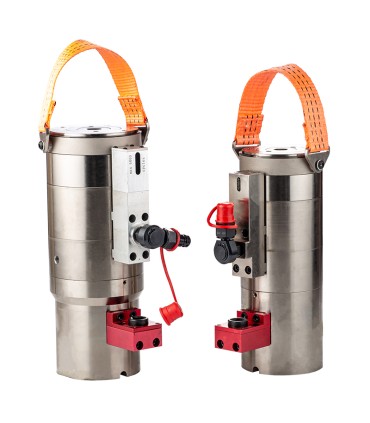

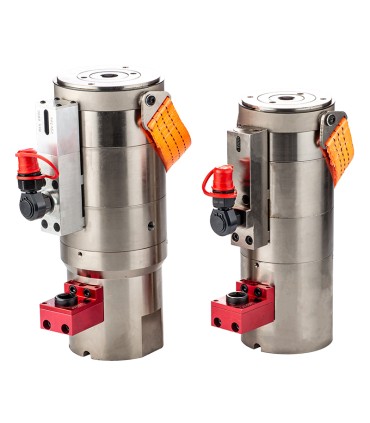

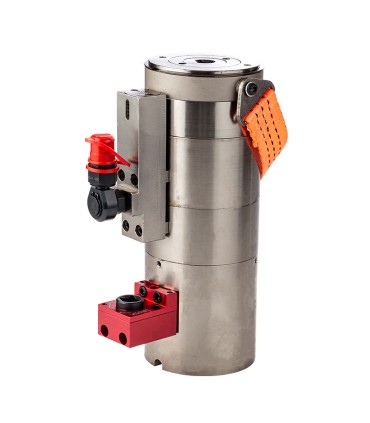

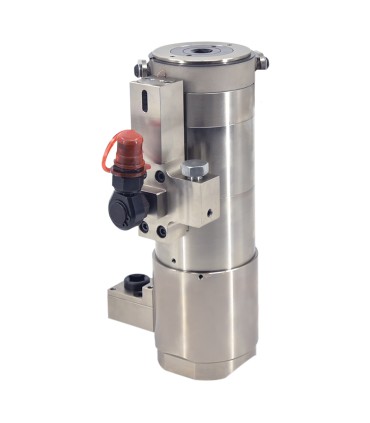

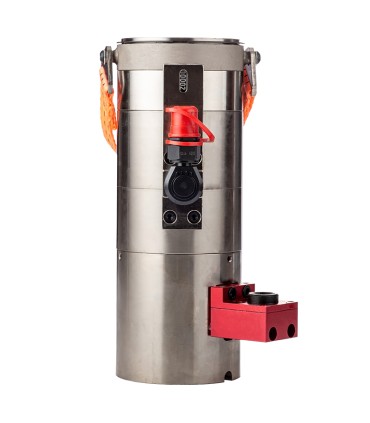

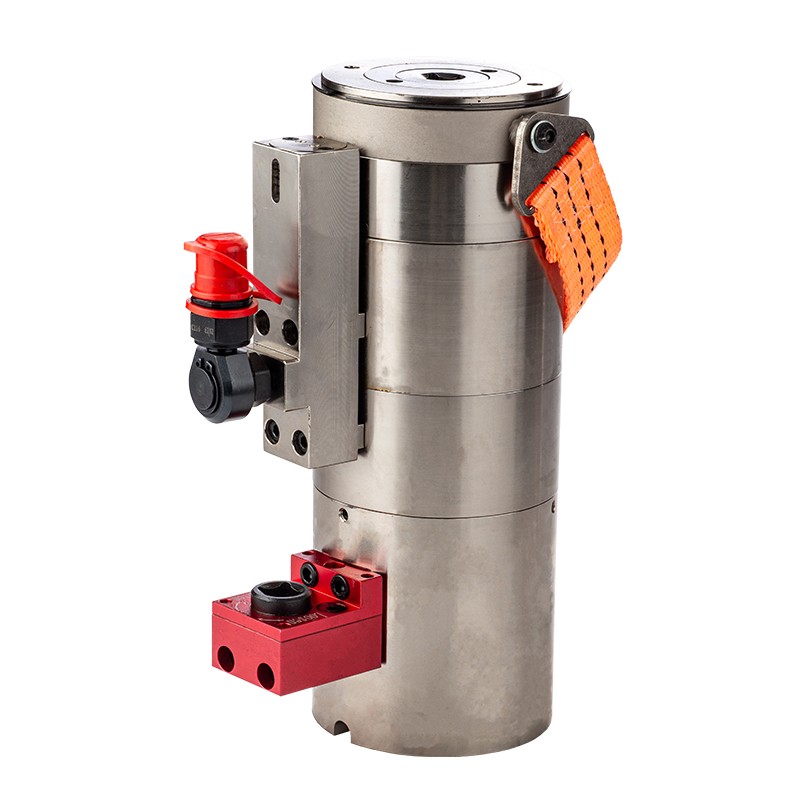

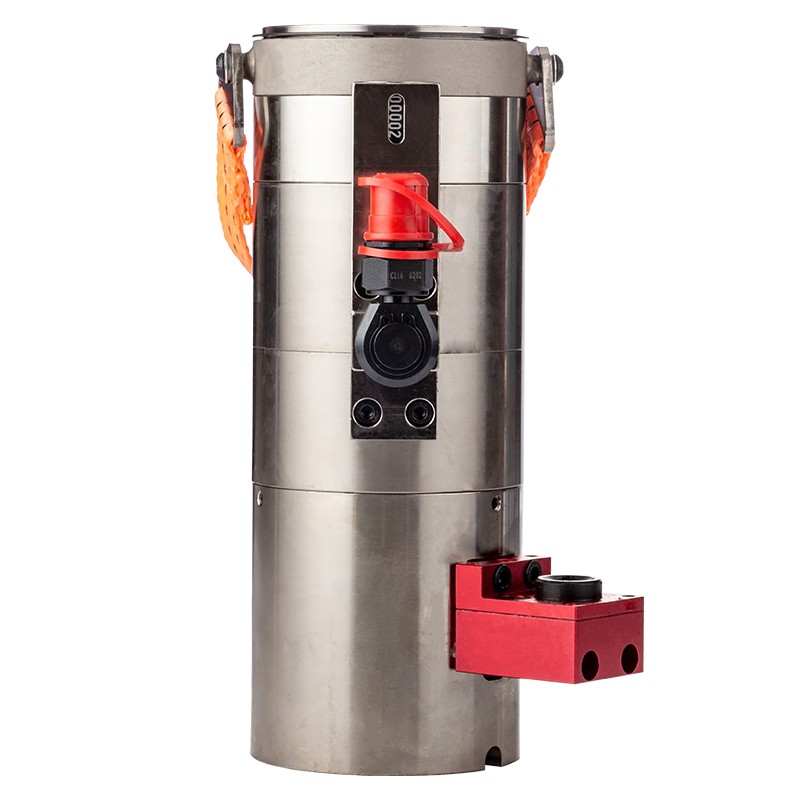

595 kN Multi-Stage Tensioner HTE-33

Model Code: HTE33
Tensioning Capacity: 595 kN (60 tons)
Bolt Compatibility: Designed for M33 bolts
Maximum Stroke: 7 mm
Operating Pressure: 1350 bar
Mechanism: Spring return with multistage systems
Applications: Suitable for wind turbine assembly
Safety Feature: Over-stroke protection included
Operation Options: Compatible with manual or electric pumps
Usability: Ideal for narrow spaces
Customization: Tailored designs available
Manufacturing Origin: Made in China by Torc-Tech

Request A Qoute

Tensioning Capacity: 595 kN (60 tons)

The HTE33 offers an impressive tensioning capacity of 595 kN (equivalent to 60 tons), making it suitable for heavy-duty applications across various industries. This robust capacity ensures optimal performance even in demanding environments where high tension is critical.

Bolt Compatibility: Designed for M33 Size Bolts

Specifically tailored for M33 bolts, the HTE33 is engineered to provide precise tensioning for this particular size. This compatibility guarantees accurate and secure bolt application, minimizing risks and enhancing overall operational efficiency.

Maximum Stroke: 7 mm

Featuring a maximum stroke of 7 mm, this tensioning tool delivers the perfect balance of power and precision. The stroke length is optimized to handle heavy-duty tensioning tasks while ensuring smooth operation and control.

Operating Pressure: 1350 bar

The HTE33 operates at an exceptional pressure of 1350 bar, ensuring powerful and efficient tensioning. This high operating pressure allows users to handle challenging applications with ease, meeting industry standards for safety and performance.

Model	HTE24	HTE30	HTE33	HTE36	HTE39	HTE42	HTE45	HTE48	HTE56	HTE64
Max.Pressure	1350 bar	1350 bar	1350 bar	1350 bar	1350 bar	1350 bar	1350 bar	1350 bar	1350 bar	1250 bar
Max.Capacity	307 kN	465 kN	595 kN	678 kN	800 kN	915 kN	1086 kN	1202 kN	1660 kN	2350 kN
Max. Stroke	7 mm	7 mm	7 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Effective Area	2274 mm²	3448 mm²	4407 mm²	5027 mm²	5926 mm²	6830 mm²	8047 mm²	9621 mm²	12296 mm²	18800 mm²
Cylinder Step	2	2	2	2	2	2	2	2	2	2
O.Diameter (ø)	59 mm	72 mm	79 mm	84.5 mm	91.5 mm	98.5 mm	107 mm	116 mm	131 mm	147.8 mm
Bolt Size	M24x3	M30×3.5	M33x3.5	M36×4	M39×4	M42×4.5	M45x4.5	M48×5	M56x5.5	M64x6
Hex Seize	36 mm	46 mm	50 mm	55 mm	60 mm	65 mm	70 mm	75 mm	85 mm	95 mm
Weight	5 kg	6.6 kg	8 kg	10.7 kg	12.8 kg	16.1 kg	20.8 kg	22 kg	24 kg	47.2 kg

Applications: Ideal for Wind Turbine Assembly

The HTE33 is specifically suited for wind turbine assembly, where precision and reliability are paramount. This tool plays a key role in ensuring the secure installation of critical components, contributing to the efficiency and longevity of wind energy systems.

Safety: Includes Over-Stroke Protection

Safety is a top priority with the HTE33, which comes equipped with over-stroke protection. This feature prevents accidental overextension, safeguarding both the tool and the user during operation

Operation Methods: Compatible with Manual or Electric Pumps

Versatility is one of the defining attributes of the HTE33. It can be operated using either manual or electric pumps, allowing users to choose the method that best suits their needs and work environment

Accessibility: Suitable for Use in Narrow Spaces

The compact design of the HTE33 ensures it can be effectively used in narrow and confined spaces. This makes it an ideal choice for applications where space is limited but performance cannot be compromised.

Customization: Tailored Designs Available

Understanding that every project is unique, the HTE33 offers customization options to meet specific requirements. Tailored designs are available to ensure the tool aligns perfectly with the demands of your application.

Manufacturing Origin: Produced in China by Torc-Tech

Proudly manufactured in China, the HTE33 is a product of Torc-Tech, a reputable brand known for its dedication to quality and innovation in the field of tensioning systems.
