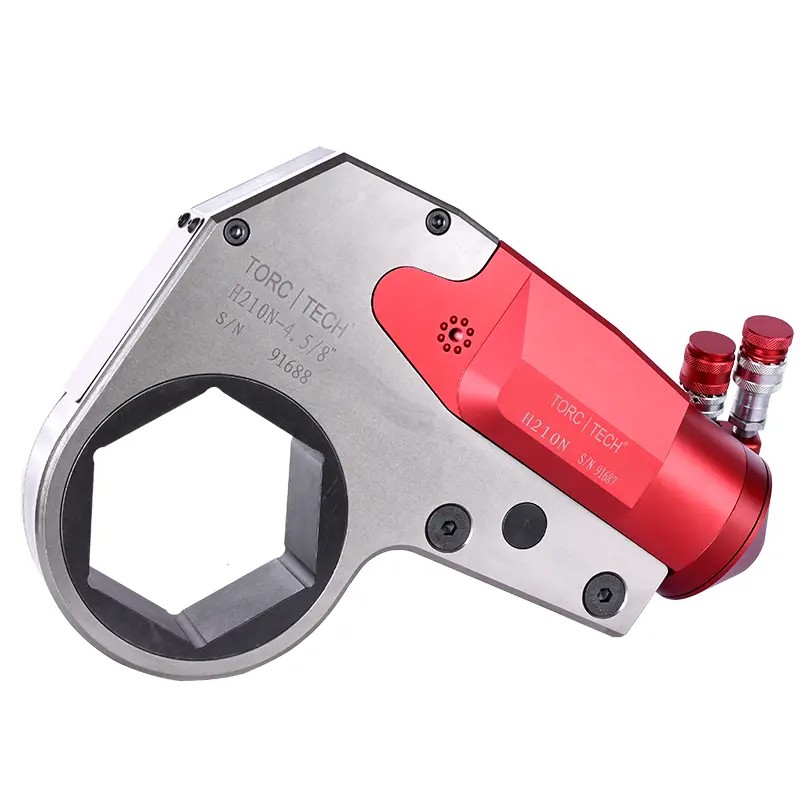

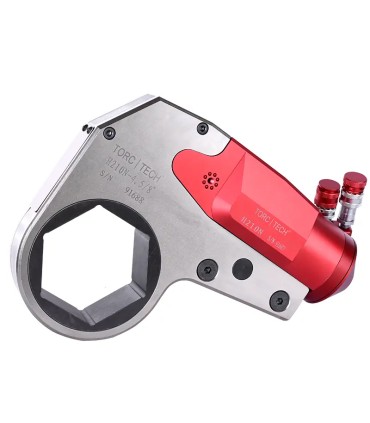

TW-H210 23.000 Nm Low Profile Hydraulic Torque Wrench

  • Model Code: H210
  • Minimum torque 2100
  • Maximum torque 23.100 Nm
  • Torque Accuracy ±3%
  • Working Pressure: 700 bar
  • Available ratchet Sizes 70 - 115 mm
  • Oil Port: 360° x 80° Rotatable
  • Power Head Weight: 5.9 kg
  • Ratchet Weight: 12 kg
  • Screw-type quick release coupling

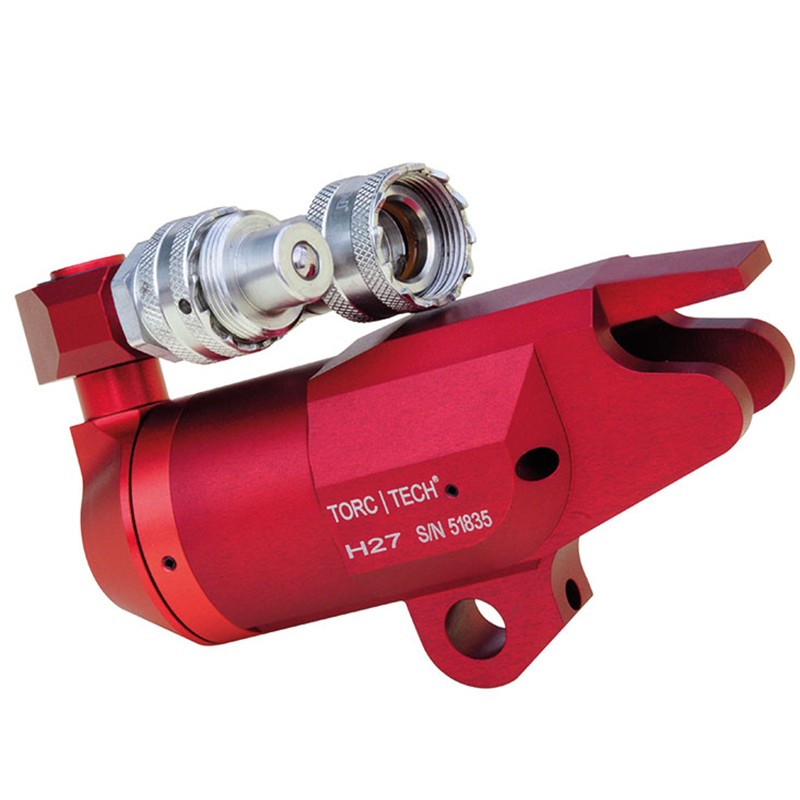

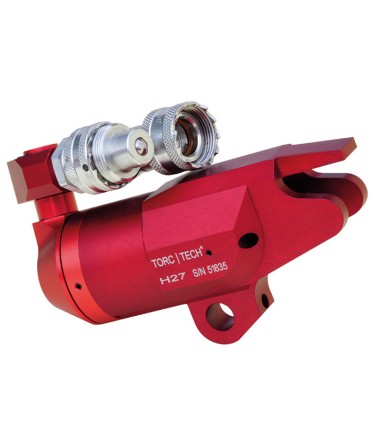

  • Power head made of aluminum

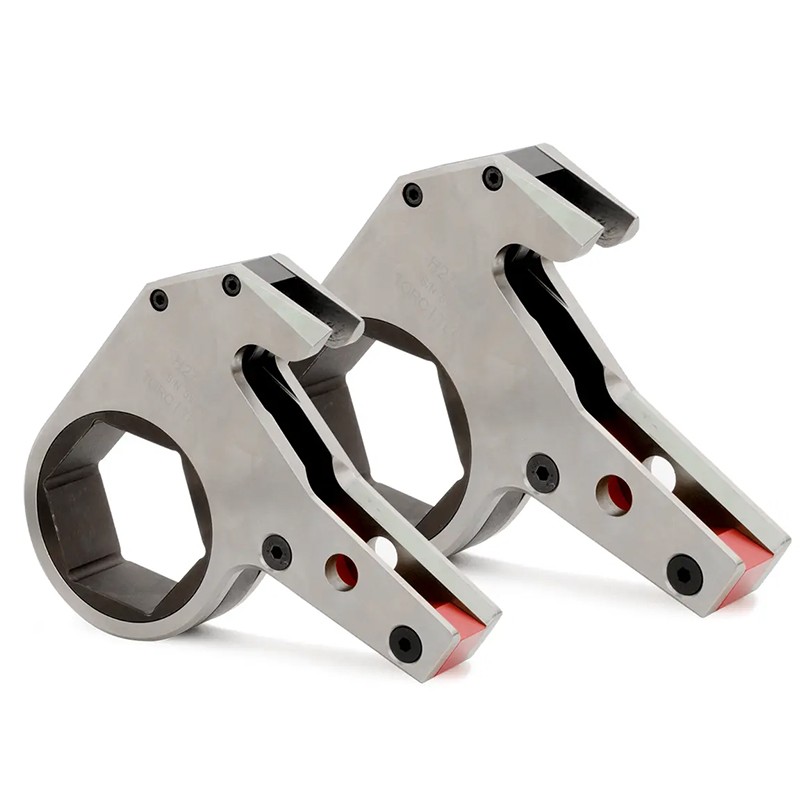

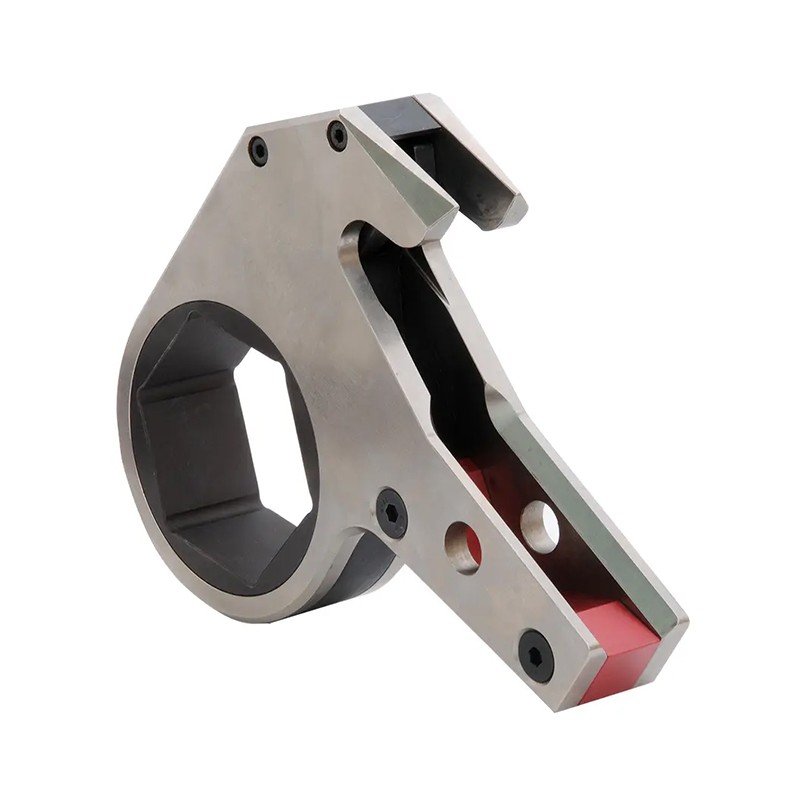

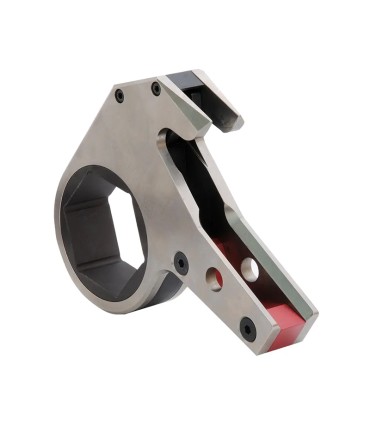

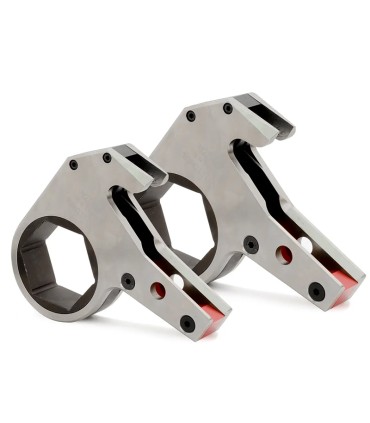

  • Ratchet, casettes are made high-strength steel
  • Delivered in a foam plastic case
  • Equivalent models of other brands
  • Hiforce TWH210N, Enerpac W4000X, Hytorc XLCT14, TorcUP TX16
Read more

High-Performance Torque Tools


Torc-Tech torque tools are designed for precision, durability, and efficiency, making them perfect for heavy-duty applications.
Below are the key features of Torc-Tech hydraulic torque wrenches:

Torque Tightening Accuracy: ±3% – Ensuring high precision in every application.
Capacity Range: From 260 Nm to 48,500 Nm – A versatile range to handle various torque requirements.
Working Pressure: 700 bar – Optimized for high-pressure environments, delivering consistent performance.
Cassette Size Range: 19 mm to 175 mm – Suitable for a wide variety of tasks and applications.

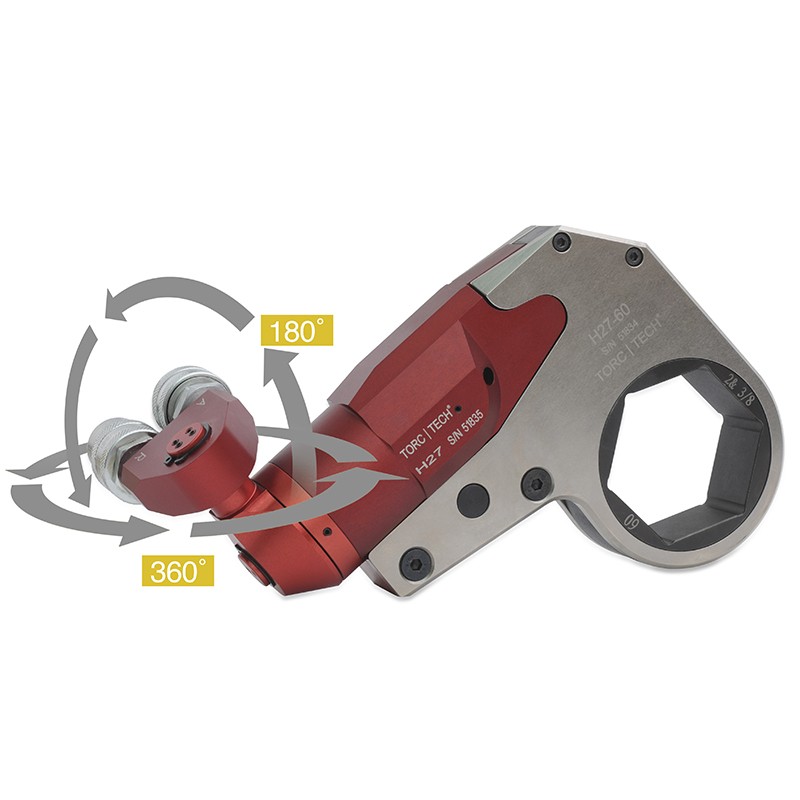

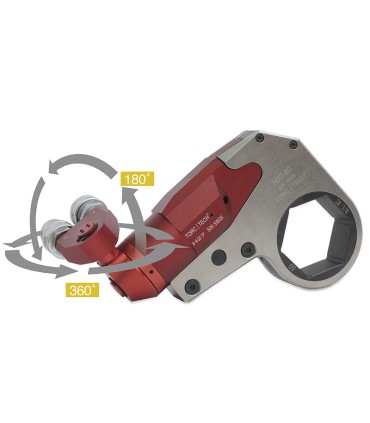

Multi-Positional Oil Port: 360° x 180° – Allows for flexible positioning, increasing ease of use and accessibility.
Quick Release Coupling Connections: Fast and easy coupling changes to improve productivity.
Easily Changeable Ratchet and Reducer: Simple maintenance, minimizing downtime and enhancing efficiency.
Designed for Heavy-Duty Applications: Built to withstand demanding conditions for long-lasting performance.
Simple Usability with Square & Hex Drives: Compatible with standard square and hex drives, offering versatile and easy handling.
Efficient Drive Assembly: Easy to assemble, reducing downtime and optimizing workflow.
Minimum Thickness, Maximum Torque Power: Compact design delivers powerful torque, without unnecessary bulk.

These tools are engineered to deliver reliable performance in tough environments, ensuring you get the job done efficiently and effectively every time.



Attachments:

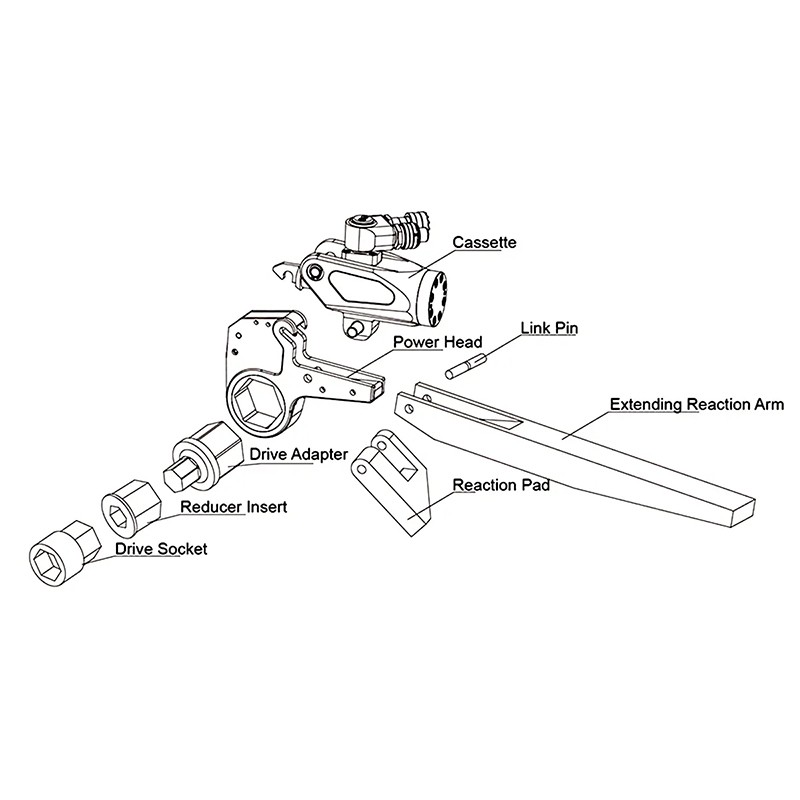

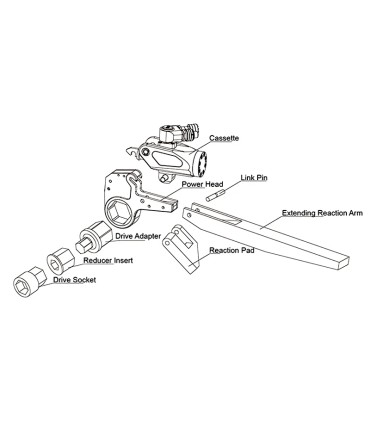

Product Datasheet Pressure Torque Table Exploded Drawing Calibration Certificate EU Trademark Reg.



Torque Wrench Technichal Table

Model Torque Range Hexagon Weight
No Maximum Minimum Size Piston Cassette
Torc-Tech Nm Nm mm Kg Kg
TW-H27 2.600 260 19 - 46 0,9 1,6
3.060 300 50 - 60 0,9 1,7
TW-H54 5.400 530 27 - 65 1,9 4,4
6.000 600 70 - 80 1,9 4,6
TW-H120 11.800 1100 50 - 80 3,4 8
14.500 1400 85 - 105 3,4 8,4
TW-H210 21.200 2100 70 - 100 5,9 12
23.100 2300 105 - 115 5,9 12
TW-H430 43.800 4.350 80 - 117 16,1 29
48.500 4.850 120 - 175 16,1 30

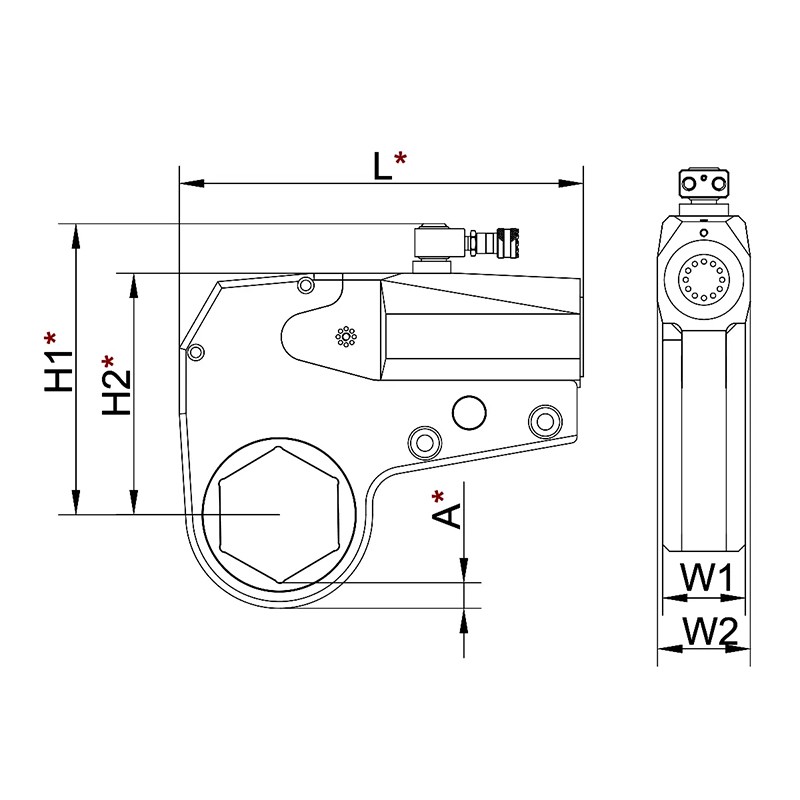

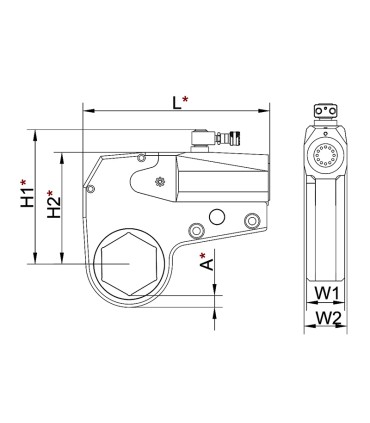

Torque Wrench Size Table (mm)

Model Sizes
No L H1 H2  W1 W2
Torc-Tech mm mm mm mm mm
TW-H27 193 125 97 32 51
193 136 108 32 51
TW-H54 250 158 125 41 64
250 169 136 41 64
TW-H120 310 189 157 52 78
310 214 182 52 78
TW-H210 378 223 191 64 97
378 236 204 64 97
TW-H430 405 291 242 83 93
425 309 260 83 93

Read more
TW-H210

Hexagon Range
70-155 mm
