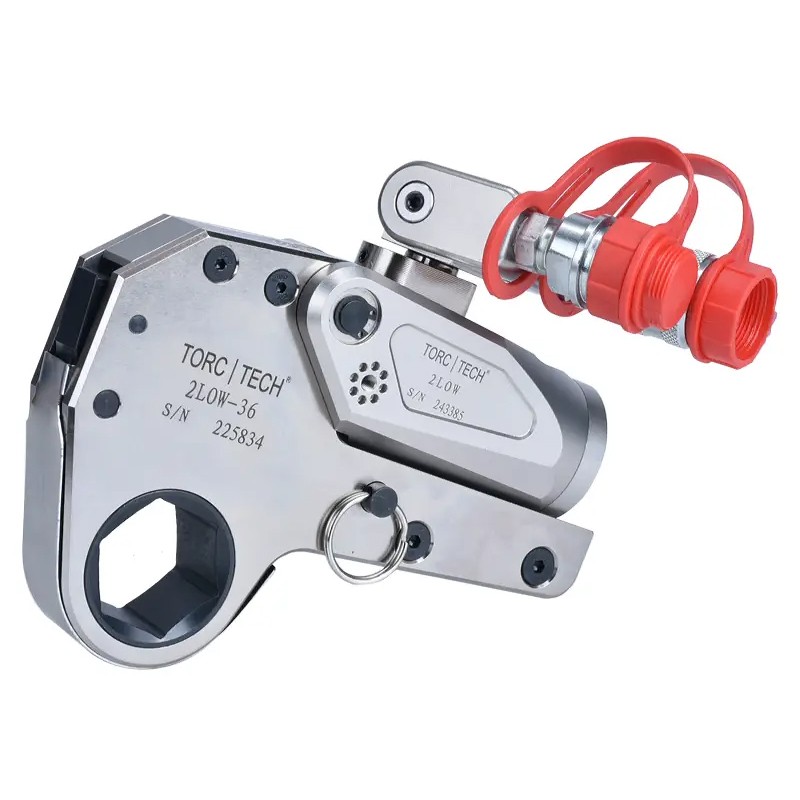

2LOW 2.400 Nm Low Profile Hydraulic Torque Wrench

  • Model Code: 2LOW
  • Capacity Range: 230 - 2400 Nm
  • Torque Accuracy: ±3%
  • Available Ratchet Sizes: 19 - 60 mm
  • Oil Port: 360° x 80° Rotatable
  • Power Head Weight: 1.0 kg
  • Ratchet Weight: 1.6 kg
  • Working Pressure: 700 bar
  • Screw-Type Quick Release Coupling
  • Power Head Material: Aluminum
  • Ratchet Material: High-Strength Steel
  • Delivered With: Foam Plastic Case
  • Equivalent Models: Hiforce TWH27N, Enerpac W2000X
  • Hytorc XLCT2, TorcUP TX2
Read more

High-Performance High Accuracy Torque Tools


Our torque tools are designed for precision, durability, and efficiency, making them perfect for heavy-duty applications.
Below are the key features of our products:

  • Torque Tightening Accuracy: ±3% – Ensuring high precision in every application.
  • Capacity Range: From 230 Nm to 44,500 Nm – A versatile range to handle various torque requirements.
  • Working Pressure: 700 bar – Optimized for high-pressure environments, delivering consistent performance.
  • Cassette Size Range: 19 mm to 175 mm – Suitable for a wide variety of tasks and applications.
  • Multi-Positional Oil Port: 360° x 180° – Allows for flexible positioning, increasing ease of use and accessibility.
  • Quick Release Coupling Connections: Fast and easy connection changes to improve productivity.
  • Easy Changeable Ratchet and Reducer: Simple maintenance, minimizing downtime and enhancing efficiency.
  • Designed for Heavy-Duty Applications: Built to withstand demanding conditions for long-lasting performance.
  • Simple Usability with Square & Hex Drives: Compatible with standard square and hex drives, offering versatile and easy handling.
  • Efficient Drive Assembly: Easy to assemble, reducing downtime and optimizing workflow.
  • Minimum Thickness, Maximum Torque Power: Compact design delivers powerful torque, without unnecessary bulk.

These tools are engineered to deliver reliable performance in tough environments, ensuring you get the job done efficiently and effectively every time.


Attachments:

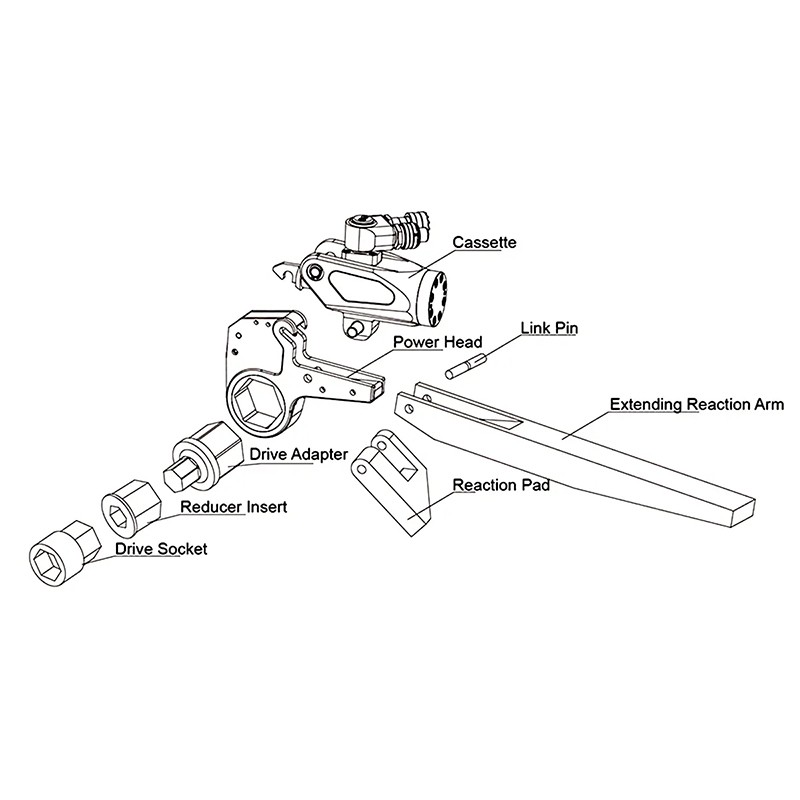

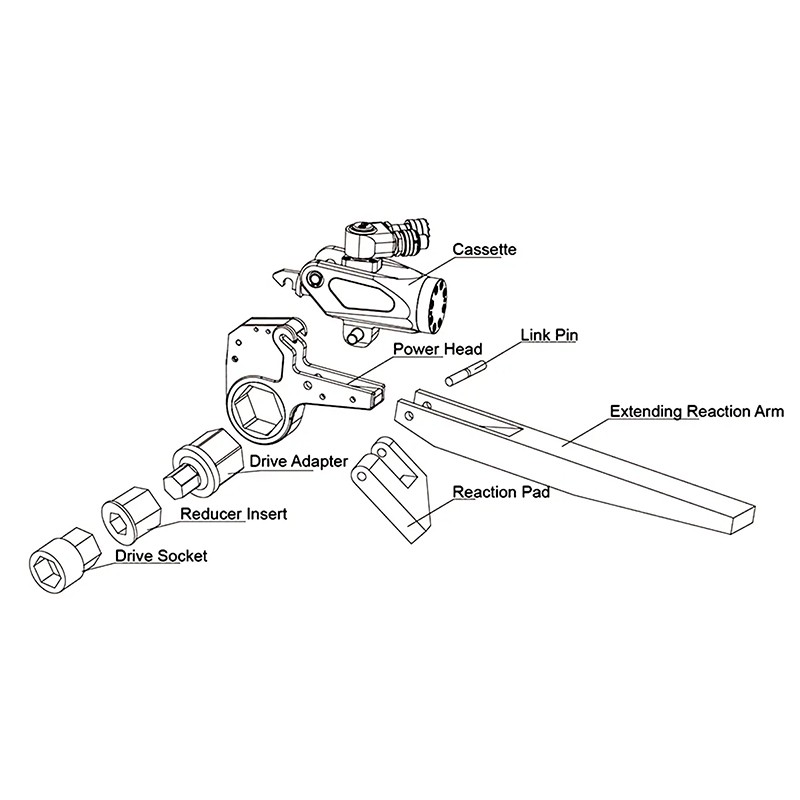

Product Datasheet Pressure Torque Table Exploded Drawing Calibration Certificate EU Trademark Reg.



Torque Wrench Technichal Table

Model Torque Range Hexagon Size  Power Head Ratchet
# N.m mm kg kg
2 LOW 230 - 2.300 19~55 1 1.6
240 - 2.400 60 1 1.7
4 LOW 580 - 5.850 34~65 2 4.4
645 - 6.500 70~80 2 4.6
8 LOW 1.095 - 10.940 41~95 3.3 8
1.175 - 11.500 100~105 3.3 8.4
14 LOW 1.850-18.500 50~117 5.5 11.6
30 LOW 4.180 - 41.800 85~155 11.4 29
4.450 - 44.500 160~175 11.4 30

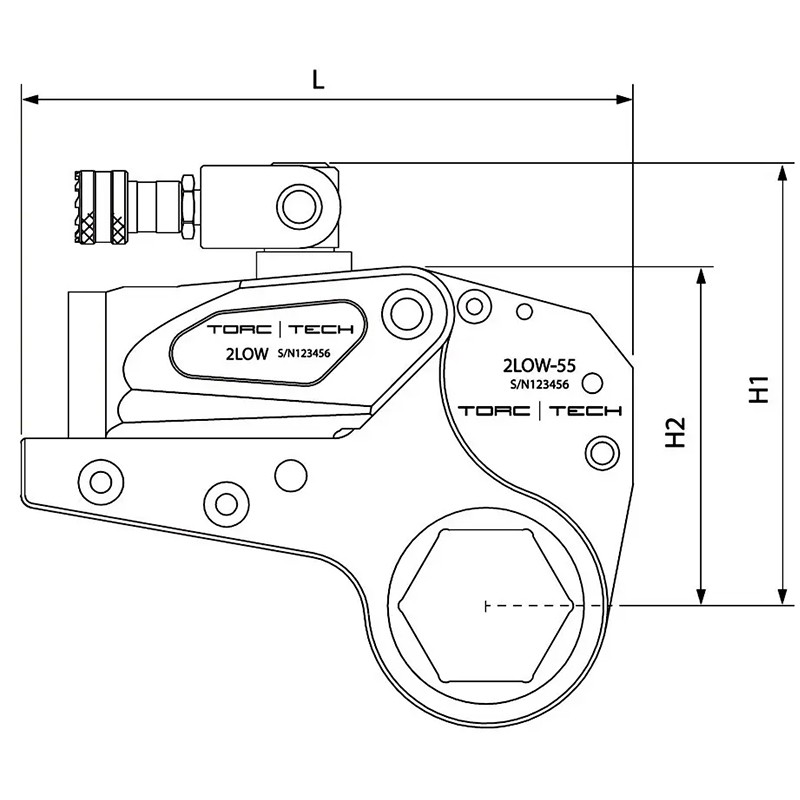

Torque Wrench Size Table (mm)
Model Dimensions (mm)
# L H1 H2 W1 W2
2 LOW 196 126 102.5 32 51
196 129 105 32 51
4 LOW 245 177 138 42 66
246 187 146 42 66
8 LOW 300 207 169 53 83
301 216 178 53 83
14 LOW 361 239 204 64 99
30 LOW 430 303 272 85 131
441 315 285 85 131

Read more
2LOW

Hexagon Range
19 -60 mm
