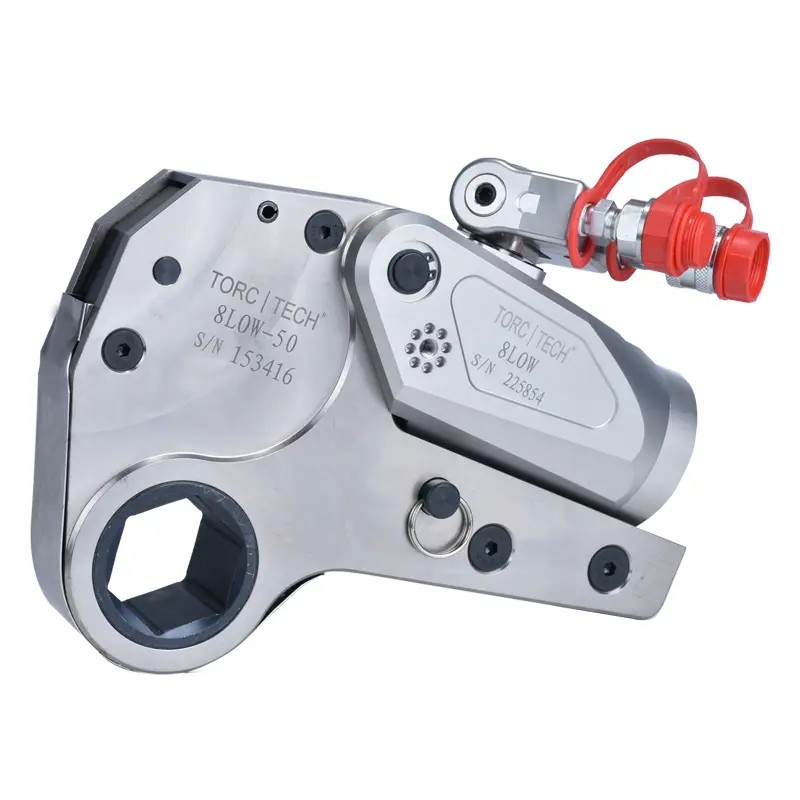

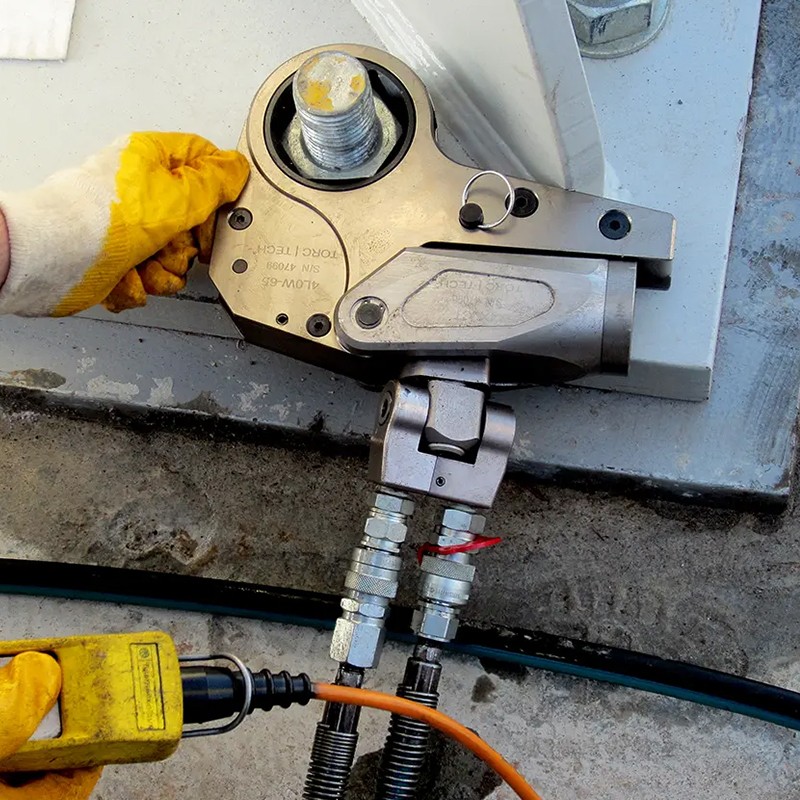

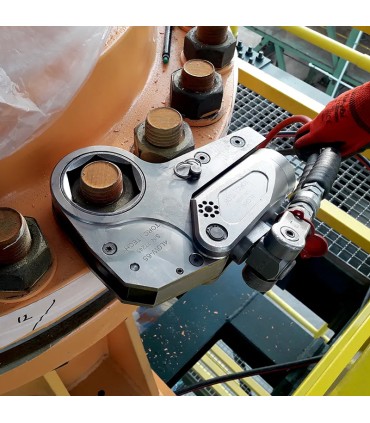

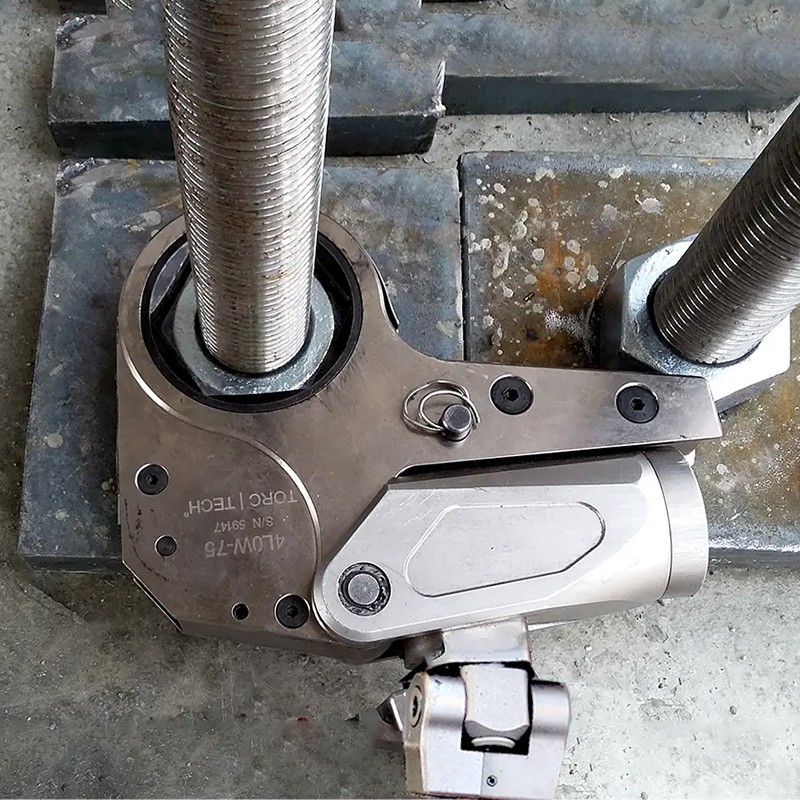

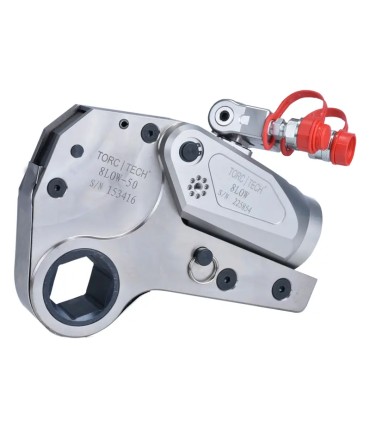

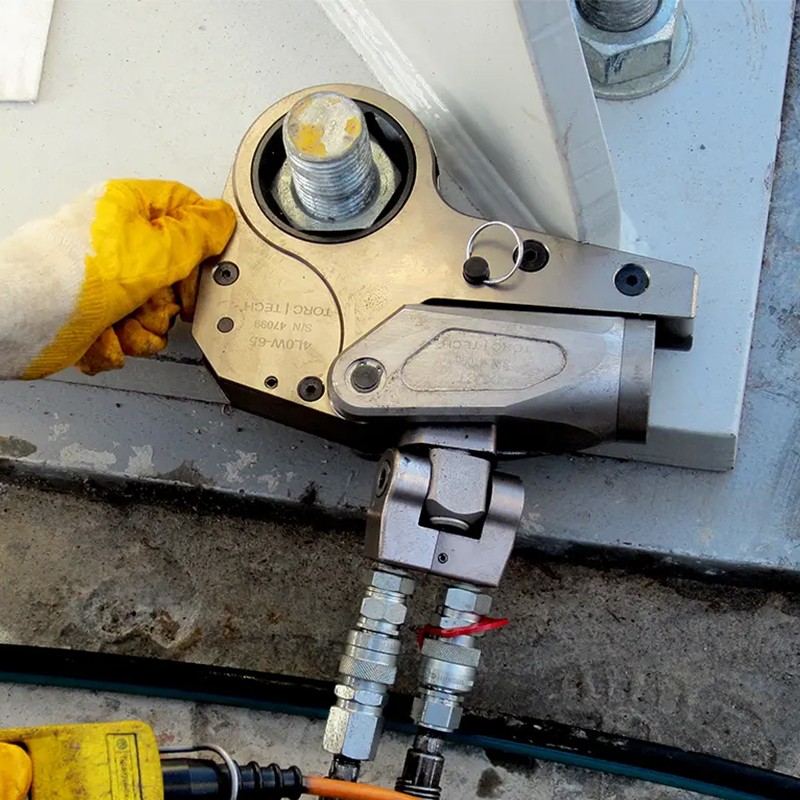

8LOW 11.500 Nm Low Profile Hydraulic Torque Wrench

Model Code: 8LOW
Capacity Range: 1.150 – 11.500 Nm
Torque Accuracy: ±3%
Available Ratchet Sizes: 41 - 105 mm
Oil Port: 360° x 180° Rotatable
Power Head Weight: 3.3 kg
Ratchet Weight: 8.4 kg
Working Pressure: 700 bar
Screw-Type Quick Release Coupling
Power Head Material: Aluminum
Ratchet Material: High-Strength Steel
Delivered With: Foam Plastic Case
Equivalent Models: Hiforce TWH120N, Enerpac W8000X
Hytorc XLCT8, TorcUP TX8

Request A Qoute

High-Performance High Accuracy Torque Tools

Our torque tools are designed for precision, durability, and efficiency, making them perfect for heavy-duty applications.
Below are the key features of our products:

Torque Tightening Accuracy: ±3% – Ensuring high precision in every application.
Capacity Range: From 230 Nm to 44,500 Nm – A versatile range to handle various torque requirements.
Working Pressure: 700 bar – Optimized for high-pressure environments, delivering consistent performance.
Cassette Size Range: 19 mm to 175 mm – Suitable for a wide variety of tasks and applications.
Multi-Positional Oil Port: 360° x 180° – Allows for flexible positioning, increasing ease of use and accessibility.
Quick Release Coupling Connections: Fast and easy connection changes to improve productivity.
Easy Changeable Ratchet and Reducer: Simple maintenance, minimizing downtime and enhancing efficiency.
Designed for Heavy-Duty Applications: Built to withstand demanding conditions for long-lasting performance.
Simple Usability with Square & Hex Drives: Compatible with standard square and hex drives, offering versatile and easy handling.
Efficient Drive Assembly: Easy to assemble, reducing downtime and optimizing workflow.
Minimum Thickness, Maximum Torque Power: Compact design delivers powerful torque, without unnecessary bulk.

These tools are engineered to deliver reliable performance in tough environments, ensuring you get the job done efficiently and effectively every time.

Attachments:

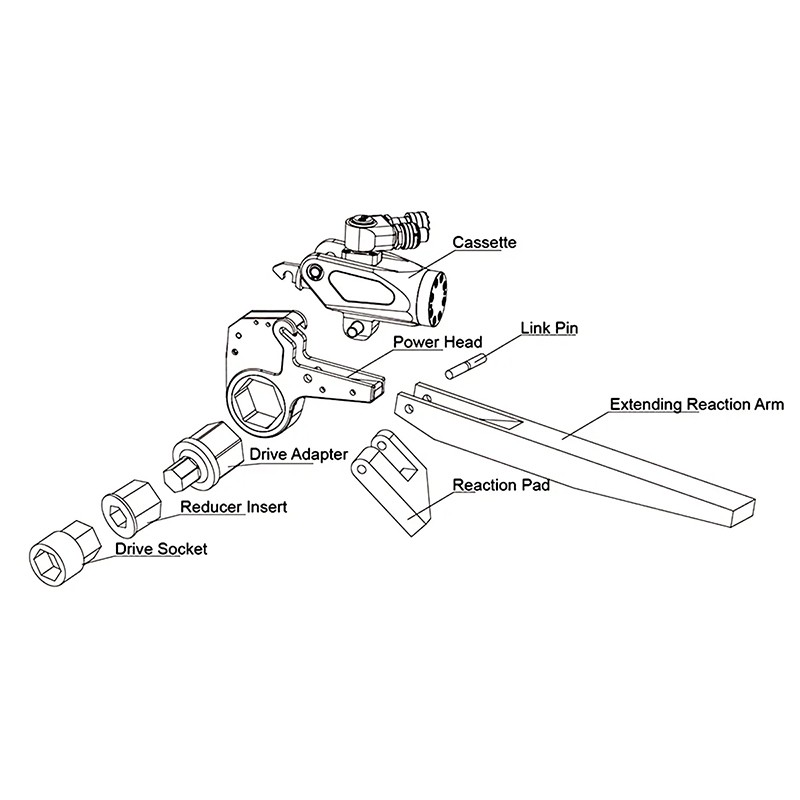

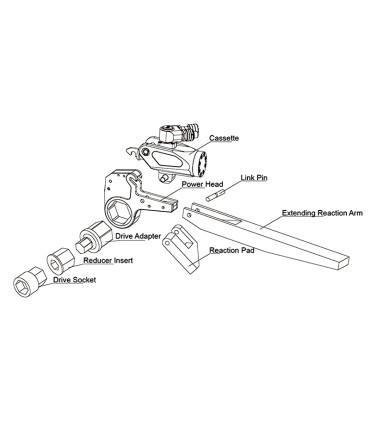

Product Datasheet	Pressure Torque Table	Exploded Drawing	Calibration Certificate	EU Trademark Reg.

Torque Wrench Technichal Table

Model	Torque Range	Hexagon Size	Power Head	Ratchet
#	N.m	mm	kg	kg
2 LOW	230 - 2.300	19~55	1	1.6
2 LOW	240 - 2.400	60	1	1.7
4 LOW	580 - 5.850	34~65	2	4.4
4 LOW	645 - 6.500	70~80	2	4.6
8 LOW	1.095 - 10.940	41~95	3.3	8
8 LOW	1.175 - 11.500	100~105	3.3	8.4
14 LOW	1.850-18.500	50~117	5.5	11.6
30 LOW	4.180 - 41.800	85~155	11.4	29
30 LOW	4.450 - 44.500	160~175	11.4	30

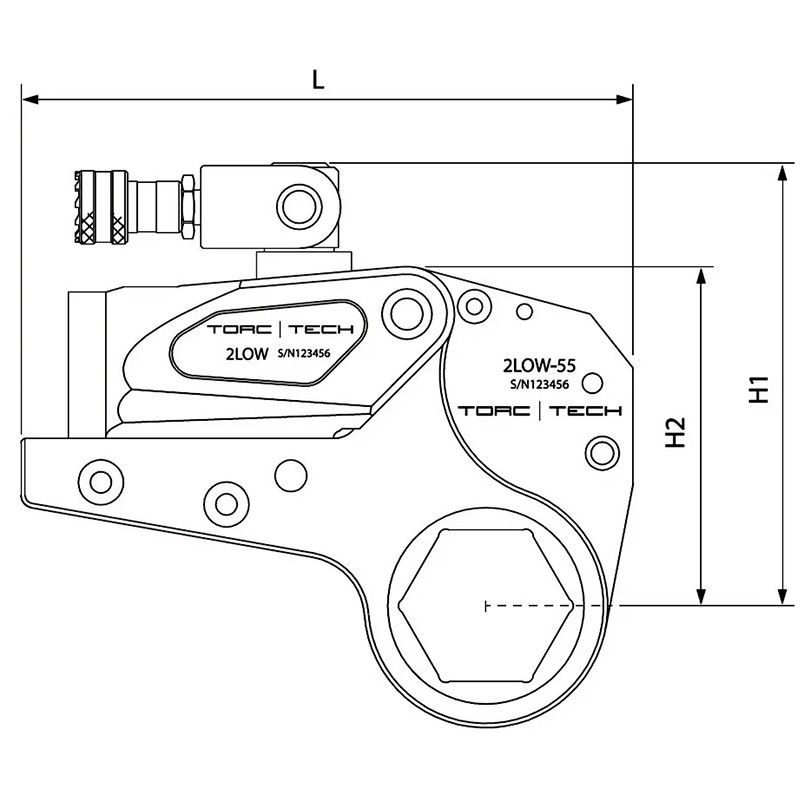

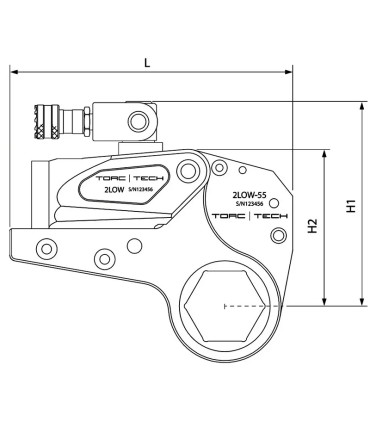

Torque Wrench Size Table (mm)

Model	Dimensions (mm)
#	L	H1	H2	W1	W2
2 LOW	196	126	102.5	32	51
2 LOW	196	129	105	32	51
4 LOW	245	177	138	42	66
4 LOW	246	187	146	42	66
8 LOW	300	207	169	53	83
8 LOW	301	216	178	53	83
14 LOW	361	239	204	64	99
30 LOW	430	303	272	85	131
30 LOW	441	315	285	85	131

8LOW

Hexagon Range: 41-105 mm
