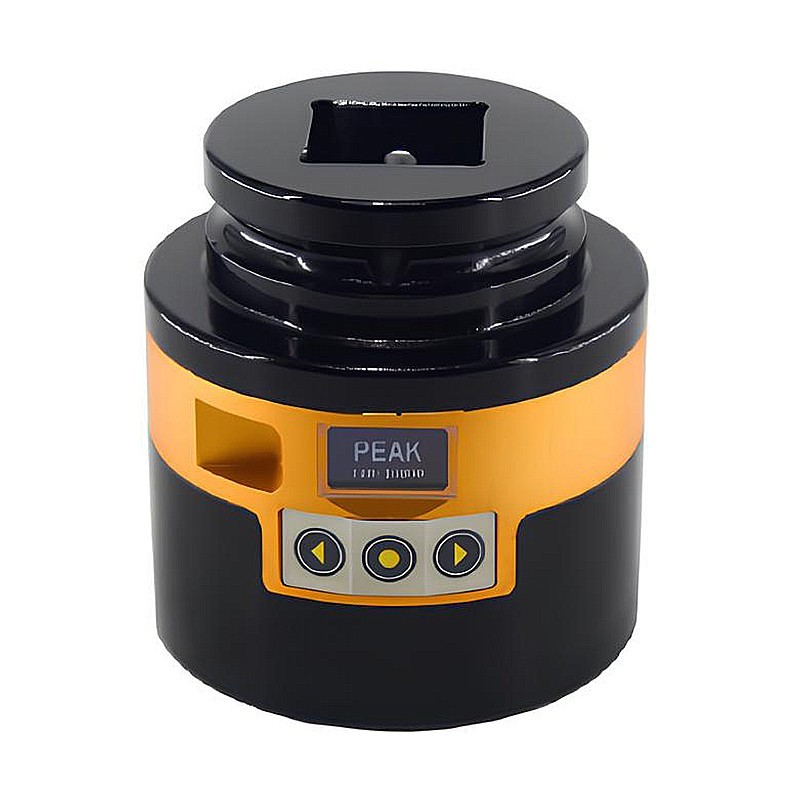

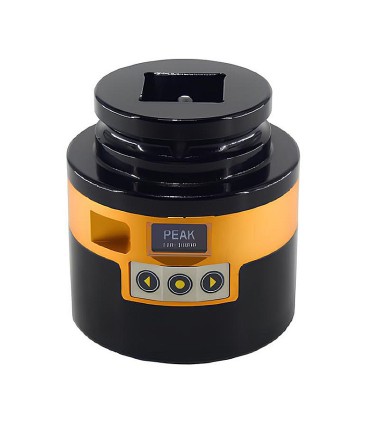

TTDS36 Digital Socket with Torque Sensor
- Model code TTDS36
- Torque accuracy ±1%
- Square drive 1” inch
- Maximum torque 2.000 N.m
- Minimum torque 200 N.m
- Data recording feature
- Bluetooth communication
- Real time torque measurement
- Torque data output XLS, CSV, PDF
- Metric size M24
- Hexagon size 36mm
- Outer Diam. 72mm- AOL height 87mm
- Weight 1,2 kg
Digital Socket: Accuracy at Your Fingertips
The Torc-Tech Digital Socket leverages advanced sensor technology to measure torque during bolt tightening.
It provides real-time torque readings, ensuring precise application for every task.
Key Features:
- Real-Time Torque Measurement: Displays the exact torque while tightening bolts.
- Compact Design: Sized like a regular socket, offering ease of use.
- Versatile Calibration Tool: Perfect for verifying bolted connections and calibrating torque tools.
The Torc-Tech Digital Socket’s compact size and advanced technology make it indispensable for accurate and reliable torque applications across various industries.
General Features:
- Peak Torque Measurement: Records the maximum torque achieved.
- Data Recording and Output: Saves torque data in XLS, CSV, or PDF formats.
- Bluetooth Connectivity: Allows seamless data transfer to your PC or smartphone via Bluetooth.
- High Accuracy: Features a sensor with ±1% accuracy.
Digital Socket Technichal Table
| Model Code | Capacity (N.m) | Hex | Square | Weight | |
| Torc-Tech | Min | Max. | Size | Drive | Kg |
| TTDS36 | 200 | 2.000 | 36mm | 1'' | 1.2 |
| TTDS41 | 200 | 2.000 | 41mm | 1'' | 1.2 |
| TTDS46 | 200 | 2.000 | 46mm | 1'' | 1.2 |
| TTDS50 | 400 | 4.000 | 50mm | 1'' | 1.5 |
| TTDS55 | 400 | 4.000 | 55mm | 1'' | 1.5 |
| TTDS60 | 400 | 4.600 | 60mm | 1'' | 1.5 |
| TTDS65 | 1100 | 10.800 | 65mm | 1.5'' | 4.9 |
| TTDS70 | 1100 | 10.800 | 70mm | 1.5'' | 4.7 |
| TTDS80 | 1100 | 10.800 | 80mm | 1.5'' | 4.2 |
| TTDS90 | 1600 | 16.000 | 90mm | 1.5'' | 6.2 |
| TTDS100 | 1600 | 16.000 | 100mm | 1.5'' | 7.7 |
Socket Size Table (mm)
| Model Code | Sizes (mm) | |||
| Torc-Tech | A | B | C | D |
| TTDS36 | 72 | 54 | 65 | 87 |
| TTDS41 | 72 | 54 | 65 | 87 |
| TTDS46 | 72 | 54 | 65 | 87 |
| TTDS50 | 86 | 54 | 69 | 89 |
| TTDS55 | 86 | 54 | 69 | 89 |
| TTDS60 | 86 | 54 | 69 | 89 |
| TTDS65 | 115 | 86 | 89 | 121 |
| TTDS70 | 115 | 86 | 89 | 121 |
| TTDS80 | 115 | 86 | 89 | 121 |
| TTDS90 | 131 | 99 | 97 | 132 |
| TTDS100 | 146 | 99 | 104 | 136 |
